e-CAM30_CUTX1 - 3.4 MP NVIDIA Jetson™ TX2/TX1 Camera Board

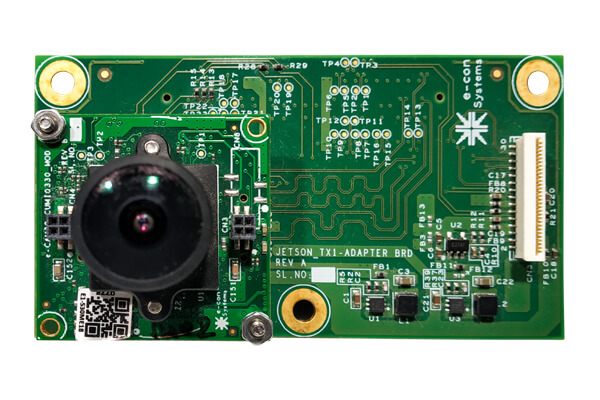

e-CAM30_CUTX1 is a 3.4 Mega pixel 4 lane MIPI CSI-2 custom lens camera board for NVIDIA® Jetson™ TX2/TX1 developer Kit. This camera is based on 1/3 inch AR0330 CMOS Image sensor from onsemi® with 2.2 µm pixel and A-Pix™ technology. e-CAM30_CUTX1 enables an excellent low-light performance and can capture good quality images even at 0.5 lux. It has an S-mount(M12) lens holder which allows customers to change the lens according to their requirement.

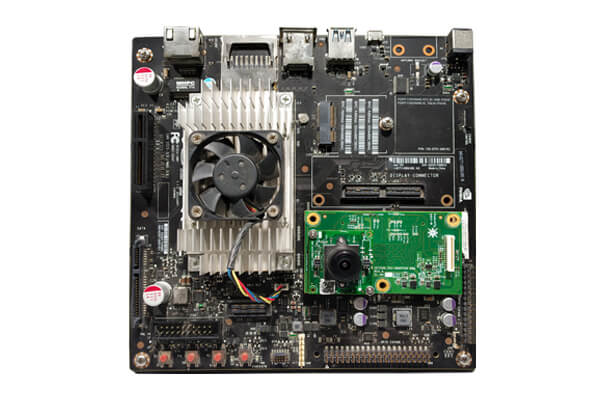

This camera can be directly connected to camera connector(J22) on the NVIDIA® Jetson™ TX2/TX1 developer Kit. e-CAM30_CUTX1 is exposed as a standard V4L2 device and customers can use the V4L2 APIs to access this camera and control the same.

  • Houses e-CAM30A_CUMI0330_MOD - 3.4 MP Camera Module with S-mount lens holder
  • High-speed 4-lane MIPI CSI-2 interface to connect with the CPU
  • Plugs in to NVIDIA® Jetson™ TX2/TX1 Development Kit
  • Leverages the 4-lane CSI-2 interface for streaming
  • Maximum Image Transfer Rate
  • UYVY
    VGA 60 fps
    HD (720p) 60 fps
    Full HD (1080p) 60 fps
    3MP 60 fps
    3.4 MP 50 fps
  • Operating Voltage - 5V +/- 5%, Current - 270mA
  • Operating Temperature Range : -30°C to + 70°C
  • Power Consumption:
    • Max : 1.35W
    • Min : 1.20W
  • Linux camera driver (V4L2) for 3.4 MP MIPI CSI-2 camera module
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Board size( L x W x H): 75.03 mm x 40.18 mm x 25.6 mm (without Lens)
  • Board Weight - 20 Grams (without lens)
                               25 Grams (with lens)
  • 開始日:launch date

Sensor:1/3" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:3.4 MP

Pixel size:2.2 µm x2.2 µm

Sensor Active Area:2304H x 1536V

Responsivity:2 V/lux-sec

SNR:39 dB

Dynamic Range:69.5 dB

Output Format:Uncompressed YUV422 format

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

ISP:External ISP

Array Size:The e-CAM30_CUTX1 supports only up to 2304x1536 pixels for 3.4 MP

DFOV : 3.4 MP - 118° (with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM30_CUTX1 on Jetson developer kit. The camera driver source code can be ported to any NVIDIA® Jetson™ TX2/TX1 platform and even to support the secondary MIPI CSI-2 interface of TX2/TX1.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson™ TX2 - JetPack 3.3 L4T28.2.1
    • NVIDIA® Jetson™ TX1 - JetPack 3.3 L4T28.2
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (both manual and automatic)
    • Digital Zoom

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM30_CUTX1 - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM30_CUTX1 Datasheet

pdf e-CAM30_CUTX1 Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM30_CUTX1 Getting Started Manual

pdf e-CAM30_CUTX1 Linux App User Manual

pdf e-CAM30_CUTX1 Gstreamer Usage Guide

pdf e-CAM30_CUTX1 Driver Guide

pdf e-CAM30_CUTX1 Release Package Manifest

pdf e-CAM_TK1 GUVCView Build & Installation Guide

pdf e-CAM30_CUTX1 Developer Guide

Download Selected Documents

Kit Contents:

  • e-CAM30A_CUMI0330_MOD - 3.4 MP Low Light Camera Module with lens
  • Adaptor board
  • SD Card
  • Linux Driver & Sample Application
  • Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
