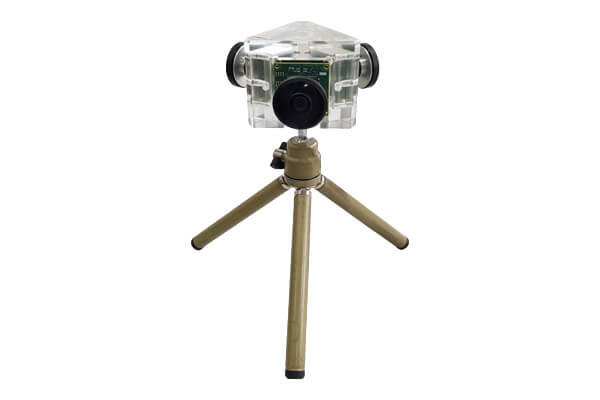

See360 Camera
See360 Camera - A 360° realtime image stitching solution from e-con systems. This product uses e-CAM130_TRICUTX2 - a 13 MP 4-Lane MIPI CSI-2 multi camera system, to obtain high resolution images as input. Our algorithm runs on NVIDIA's GPU to stitch 3 x 4K images in real time.
Key Features
- Houses Three e-CAM137_CUMI1335_MOD Camera Module
- Streams 3 synchronized YUV422 4K (3840 x 1920) @ 30fps
- 4-lane MIPI CSI-2 interface

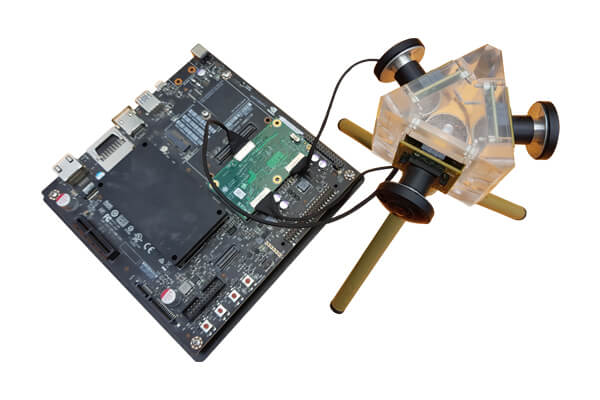

- Plugs into NVIDIA® Jetson™ TX2 developer kit
- Live video stitching on GPU
- 360° live panoramic streaming
- Virtual camera for rectilinear projection of stitched image
- Note: The technical information are subject to change
Sensor:1/3.2" Optical format CMOS Image sensor
Focus Type:Fixed focus
Resolution:13.0 MP
Pixel size:1.1 µm x1.1 µm
Sensor Active Area:4208(H) x 3120(V)
Responsivity:4700 ke-/lux-sec
SNR:37 dB
Dynamic Range:69.6 dB
Output Format:Uncompressed UYVY streaming & Compressed MJPEG streaming
Shutter type:Electronic Rolling Shutter
Holder:S-Mount
ISP:External ISP
Array Size:4208x3120
DFOV : 13MP - 134° (with the lens provided by e-con)

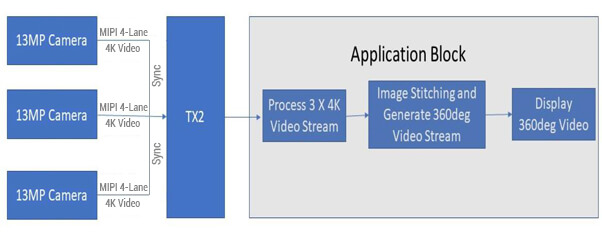

See360 Camera Block Diagram
See360 Document
