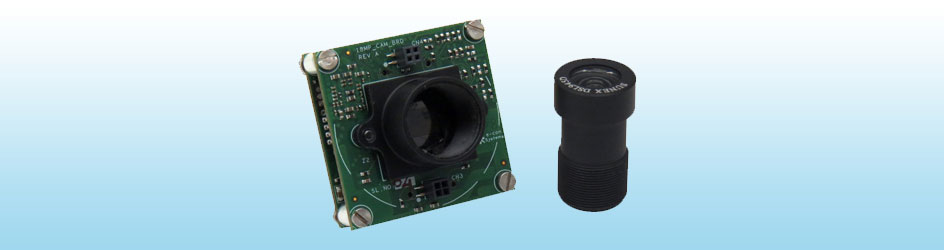

See3CAM_CU130 MJPEG Image quality improvement

During a client interaction, e-con Systems found out that the quality of See3CAM_CU130’s MJPEG mode had some jagged edge issues. Learn the details on how we checked our ISP to unearth the scope for increasing the MJPEG quality in See3CAM_CU130.

See3CAM_CU130 MJPEG Image quality improvement

One of our See3CAM_CU130 customers was evaluating the camera image quality for his application requirement, by capturing some of the fixed test charts.

After capturing the image of following chart he was unhappy with the quality in the MJPEG mode of the See3CAM_CU130. We took the original chart from his blog site and tried capturing the same image in MJPEG format.

We also found the same issue faced by the customer. Find the picture below with the jaggered slant edges.

13MP-USB3-Camera-MJPEG-with-jaggered-edges

    Figure 1: 13MP MJEPG Image with jaggered edges issue

Please refer this blog to know more about the issue. www.voxel.at/voxel/blog/e-con-systems-13mpixel-usb-module

We suspected this issue could be due to the JPEG compression. Hence we verified capturing the same images in YUV and without surprise, we were able to capture good quality image as below.

13MP-USB3-Camera-YUV-without-any-artifacts

    Figure 2: 13MP YUV Image without any artifacts

But customer was interested only in the MJPEG format with the good quality of the image without the jaggered edges. We checked our ISP that we had a scope for increasing the MJPEG quality with the cost of Frame rate.
We checked with the customer on his preference of good quality with lesser frame rate. So we had tuned our ISP MJPEG setting to get the maximum quality similar to the Uncompressed YUV output. After tuning the binning setting of the ISP we were able to get the similar image as the YUV Image, but with lesser frame rate.

13MP-USB3-Camera-MJPEG-with-quality-improved.

    Figure 3: 13MP MJPEG Image with quality improved

Find Below the statistics which shows the frame rate reduction after increasing the image quality.

  13MP MJPEG   USB 3.0
  Low Quality   20 FPS
  High Quality   12 FPS

Here is the update from the customer on the improved image quality.
www.voxel.at/voxel/blog/e-con-systems-13mpixel-camera-update

Customers who have purchased See3CAM_CU130 can write to sales@e-consystems.com, if they are interested in the firmware update to improve the 13MP MJPEG image quality.
