How to Build ROS Application using TaraXL

Robot Operating System (ROS) is an OS-based, meta-operating system for robots – providing services like hardware abstraction, low-level device control, message-passing, etc. Discover how you can build a ROS application using TaraXL - a UVC-compliant 3D stereo camera.

Build ROS
What is ROS?

Robot Operating System (ROS) is an open-source, meta-operating system for robot. It provides the services from an operating system including hardware abstraction, low-level device control, implementation of commonly-used functionality, message-passing between processes, and package management. It also provides the tools and libraries for obtaining, building, writing, and running code across multiple computers. ROS implements different styles of communication including synchronous Remote Procedure Call (RPC) style communication over services, asynchronous streaming of data over topics, and storage of data on a Parameter Server.

Introduction to TaraXL

TaraXL from e-con Systems™ is a UVC compliant 3D Stereo camera based on MT9V024 stereo sensor from ON Semiconductor which supports WVGA ((2*752) x 480) at 60 fps over USB 3.0 in uncompressed format. This stereo camera provides two synchronized sensor frame data interleaved side by side to the host machine over USB 3.0 interface.

TaraXL can be used by customers who want to develop their Stereo camera algorithms and to integrate Stereo camera in their product design. It is provided with accelerated SDK for Nvidia’s TX2,Xavier, Nano boards and x86(Ubuntu 18.04) linux platform which is ideal for depth application product designs.

e-con SystemsTaraXL Stereo camera is ideal for applications such as Depth Sensing, Disparity Map, Point Cloud, Machine vision, Drones, and so on.

The taraxl-ros-package enables you to use the TaraXL Stereo camera with ROS. To download the taraxl-ros-package on github, go to

Install Prerequisites

Before installing the taraxl-ros-package, you must install the prerequisites for TaraXL SDK. Go to to install the prerequisites for TaraXL SDK.

Test Package

After installing the taraxl-ros-package package, you can perform the features that are supported in TaraXL. To know more about the procedure to launch and perform the features of TaraXL, go to

Published Topics
  • /taraxl/left/image_rect – Rectified Left Image
  • /taraxl/right/image_rect – Rectified Right Image
  • /taraxl/stereo/disparity/image – Disparity Image
  • /taraxl/depth/image – Depth Image

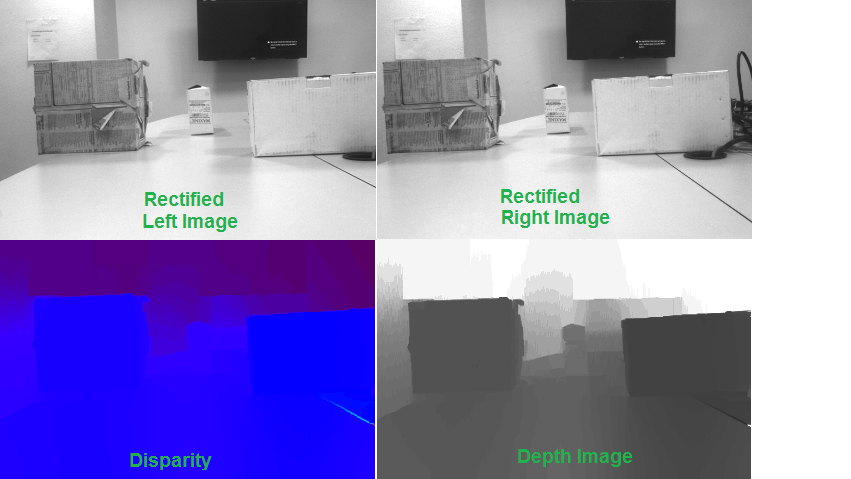

The images displayed by TaraXL are as follows:

  • Rectified Left Image – The image rectification is a transformation process to project images onto a common image plane. It is performed to remove distortion in the images and find matching points between images captured in left camera.

  • Rectified Right Image – The image rectification is performed to find matching points between images captured in right camera.

  • Disparity Image – The disparity image provides the distance between two corresponding points in the left and right image of a stereo pair.

  • Depth Image – The depth image contains the information relating to the distance of the surfaces of scene objects from a viewpoint.

Disparity depth image

Dynamic Reconfiguration Settings

The features available for TaraXL are as follows:

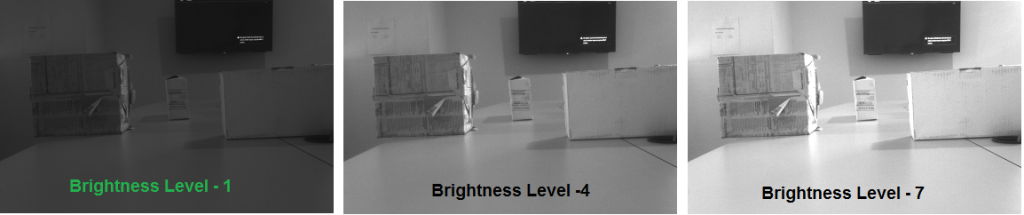

  • Brightness – You can set the brightness value of the image from the range of 1 to 7. The default value for this control is 4.

brightness level

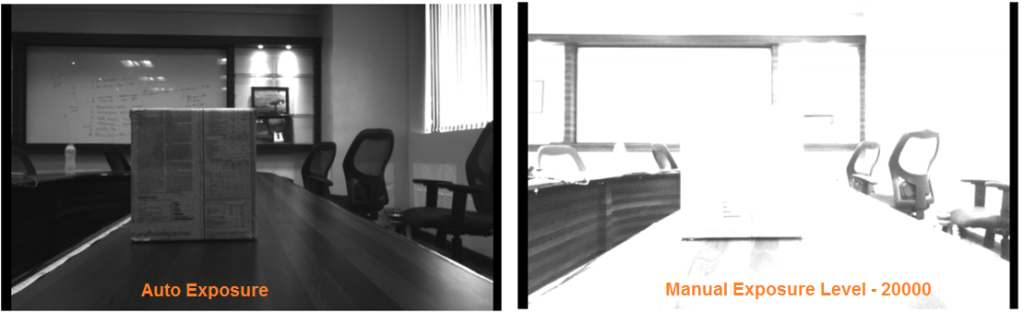

  • Auto Exposure – You can set the auto exposure for the camera by enabling this control. By default, this control is enabled.

  • Manual Exposure – You can set the manual exposure value from the range of 10 to 1000000ms. The default value for this control is 8000ms.

exposure level

  • Accuracy – The disparity image will provide smoothness with minimal amount of noise.

You can adjust the above settings by running the below command.

# rosrun rqt_reconfigure rqt_reconfigure

If you need any support for building ROS application using TaraXL, You can write to
