8MP MIPI camera on Jetson TK1

e-CAM80_MI8825_MOD, an 8 MP HD MIPI camera module featuring the Omnivision OV8825 image sensor, can be used with any processor that supports the MIPI-CSI2 standard. Dive deep and see how we tested this camera on Jetson TK1 to evaluate an entire imaging pipeline.


Update: e-con Systems™ has released camera boards for Jetson TK1:

 e-CAM130_CUTK1 13.0 MP AR1820 MIPI camera board for Jetson TK1
 e-CAM40_CUTK1 4.0 MP OV4682 RGB-IR MIPI camera board for Jetson TK1
 e-CAM30_CUTK1 3.4 MP AR0330 Low Light MIPI camera board for Jetson TK1

The e-CAM80_MI8825_MOD is a 8 MP HD MIPI camera Module featuring Omnivision OV8825 image sensor. It is compliant with the MIPI-CSI2 standard and hence can be used with any processor that supports the same. Some of it’s key features are :

  • Support for Auto, single trigger and Manual focus modes.
  • Maximum data transfer rate of 8MP at 11 fps.
  • Also supports 1080p at 30 fps and 720p at 55 fps

Our target was to test and evaluate the entire imaging pipeline available on the Tegra K1 processor. We chose the Jetson TK1 as our development kit. The features of the Jetson TK1 dev kit are :

  • Powerful Tegra K1 System On Chip with:

–  4-Plus-1 quad-core ARM Cortex A15 CPU
–  Kepler GPU with 192 CUDA cores

  • 2 GB  DDR3L memory with 64 bit width
  • Camera Serial Interface (CSI), based on the MIPI CSI 2.0 standard specification.
  • Dual ISP3s for simultaneous processing of two separate image data.
  • A high performance H.264 capable hardware video encoder with support for VP8 encoding.

Previously we tested our See3CAM line of USB 3.0 products on the Jetson TK1 and posted the results on our blog. They have been added to the Jetson wiki page as well.

When using USB cameras, the image data from the sensor is encapsulated within USB packets according to UVC protocol. This causes a small overhead in the processor side because the image data has to be separated from the USB packets in the kernel driver side. This processing is done on the CPU cores. In addition to this, the performance of the USB3.0 controller on the Jetson TK1 (XUSB) cannot be fully evaluated.

This is where MIPI comes in. The MIPI CSI 2.0 specification is a protocol developed especially for interfacing camera sensors (camera subsystem) with application processors or any host device. The availability of the CSI interface in the Jetson, provides a method for obtaining camera data from a MIPI CSI 2.0 compliant sensor with minimal overhead. The MIPI level transactions are handled by a separate hardware component (CSI) and it allows direct access to image data in the memory/ISP.

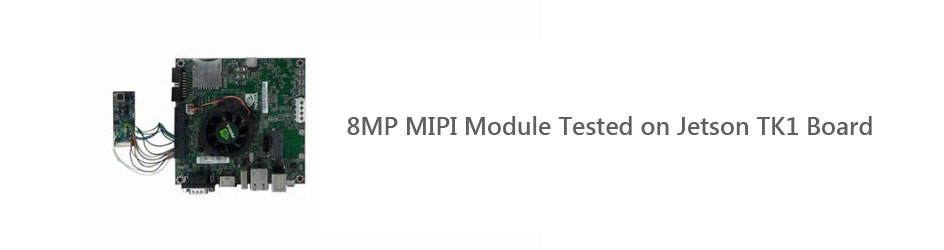

We tested the ACC-iMX6-MI8825CAM which is an Accessory board for our Ankaa – iMX6 development kit using the e-CAM80_MI8825_MOD module. We successfully wired it up to the MIPI-CSI2 lines on the Jetson TK1 development kit using the schematics and processor reference manual provided by NVIDIA for developers. We implemented the platform as well as sensor driver for the module based on the V4L2 framework. We were able to achieve full performance of the module while using the powerful NVIDIA Tegra K1 processor in the dev kit. The board can handle high resolution rendering as well without any form of image corruption.

We tested the camera driver on the latest version of BSP provided by NVIDIA which is L4T_R21.2 as of the date of writing this article. The camera image data can be utilized by any application which uses the V4L2 framework. We have tested using gstreamer-0.10 only so far, but OpenCV and any other custom application written using V4L2 framework will work.

We plan to develop a daughter board for the Jetson TK1 dev kit using this module such that it can be directly connected to the J3A2 connector on the board to remove the hassle of wiring up the sensor. Work is in progress and hope to see it launched soon. Please check our NVIDIA Camera page for the product updates.

Here is a sample video demonstrating the working of the sensor module with the Jetson TK1.

Customers interested in using a different MIPI camera/sensor module on Jetson Kit can contact sales@e-consystems.com and explain their requirement.

Related posts


Nicolai March 29, 2015 at 7:32 pm

did you made any progress in your custom hardware adapter board? We would be very pleased to test yout CSI image sensor with our Jetson TK1 development board. Do you have further plans or dates, concerning the release of a CSI board for the Jetson TK1? Or could you give us the opportunity to evaluate your V4L2 driver with the mentioned ACC-iMX6-MI8825CAM Board and custom wiring, as fast as possible?
We are happy to hear from you soon!

Anitha Jothiprakash June 17, 2015 at 4:25 pm

Dear Nicolai,
Yes, we have launched our 13 Mega Pixel, 4-lane MIPI CSI-2 Camera solution for nVIDIA® TK1 kit – e-CAM130_CUTK1.

e-CAM130_CUTK1 supported with Linux camera driver (V4L2)

ryan_h July 13, 2015 at 9:06 pm

Hi, do you have an actual guide on how to wire this up? I bought a e-CAM80_MI8825_MOD for the purpose of integrating into my TK1 but the guide you have posted here is lacking any real wiring information.

Dilip Kumar July 14, 2015 at 3:35 pm

Hi Ryan,
Thanks for your interest on our camera, e-CAM80_MI8825_MOD. The intention of this blog post was to demonstrate our success in interfacing a MIPI camera with the Jetson TK1. We couldn’t go in detail on how to interface MIPI sensors to the Jetson TK1 in the same. However We could help you with interfacing the e-CAM80_MI8825_MOD with your Jetson Kit. Please contact techsupport@e-consystems.com with your queries.

Ramakrishna June 10, 2017 at 11:14 am

It seems I have stumbled across what I have been looking for. Auto focus , UVC USB 3.0 with 13 Mega Pixels is what I need. Could you please post the snapshots of a few pages from some book ( small fonts, finer outlines ) with your 5 Mpixels, 8 Mpixels,
13 Mpixels, as I want to make my own little Book Scanner.

Anitha Jothiprakash June 19, 2017 at 3:36 pm

1. Please share the sample source document (in PDF version) need to be pictured? (or) share the Font name, size?
2. Do you have any height/distance specification between the camera and document?
