Ankaa Freescale i.MX6 Development Board

eSOMiMX6 Reference Design

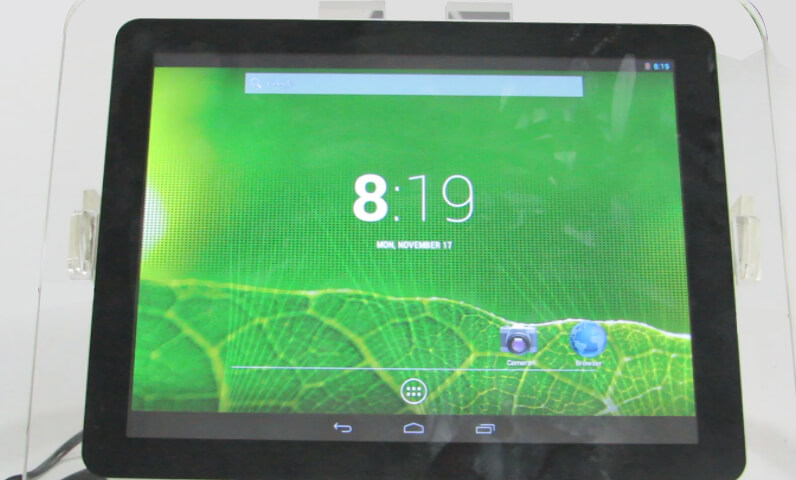

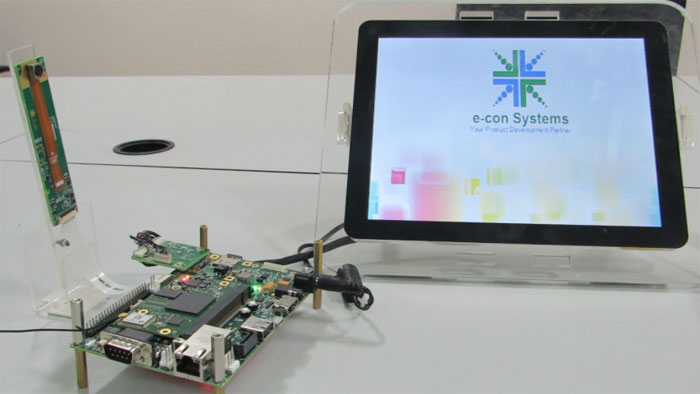

iMX6 Development Board, Ankaa is a dual board solution that features eSOMiMX6 - Computer on Module & carrier board. The iMX6 development board runs Linux/Android/WEC 2013.

eSOMiMX6 is based on Single/Dual/Quad core ARM Cortex-A9 processor. Our i.MX6 Development Board has DDR3 SDRAM configurable up to 2GB and eMMC configurable up to 4GB. The eSOMiMX6 module also has the Wireless LAN and Bluetooth module.

i.MX6 Development Board comes with HDMI to HDMI Cable, USB to serial port cable, 9V Power Supply and 7 inch LCD with Capacitive touch. This iMX6 board is used in the various applications like Automation, Medical Imaging, etc.

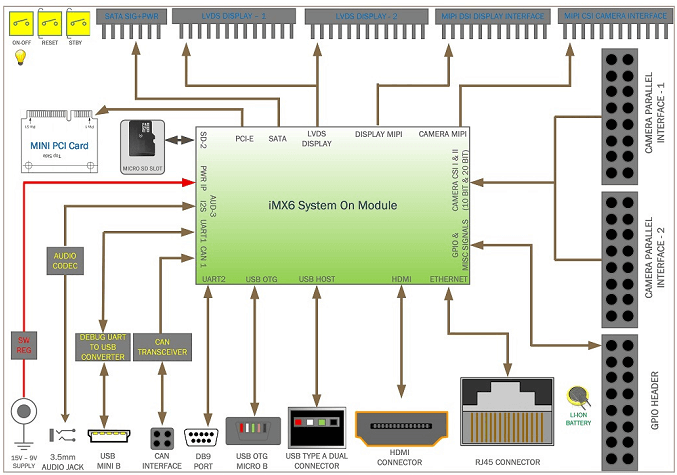

  • eSOMiMX6 - i.MX6 Computer on Module
    1. NXP-Freescale ARM Cortex A9 i.MX6 processor
    2. 64 bit 1 GB LVDDR3
    3. 8 bit 4 GB eMMC flash
    4. Power Management IC
    5. Part No: eSOMiMX6-CS-P1G-F4G-R1G-WB-E
  • Camera
    1. MIPI - 4 lane interface
    2. Parallel interface 1 - 10 bit
    3. Parallel interface 2 - 20 bit (Dual & Quad processor only)
  • Display
    1. HDMI (x1)
    2. LVDS (x2)
  • Networking
    1. WIFI 802.11 b/g/n & Bluetooth 4.0 BLE
    2. 1 Gig Ethernet
  • Serial Ports
    1. 1 RS232, 1 Debug Port
  • USB
    1. 1 USB Host (2.0)
    2. USB OTG (2.0)
  • Digital Audio
    1. Audio Codec with Mic and Stereo headset support
  • Miscellaneous
    1. I2C
    2. SPI
    3. CAN
  • SD/MMC Card Support
    1. Mini PCIe slot
    2. SATA
    3. One 4bit SD Card interface
  • Dimension - 135mm (L) x 90mm (B)
  • Power Supply: 9V @ 2.5A rated
  • Commercial Temperature - 0°C to 70°C
  • Linux / Android / WEC2013 Support

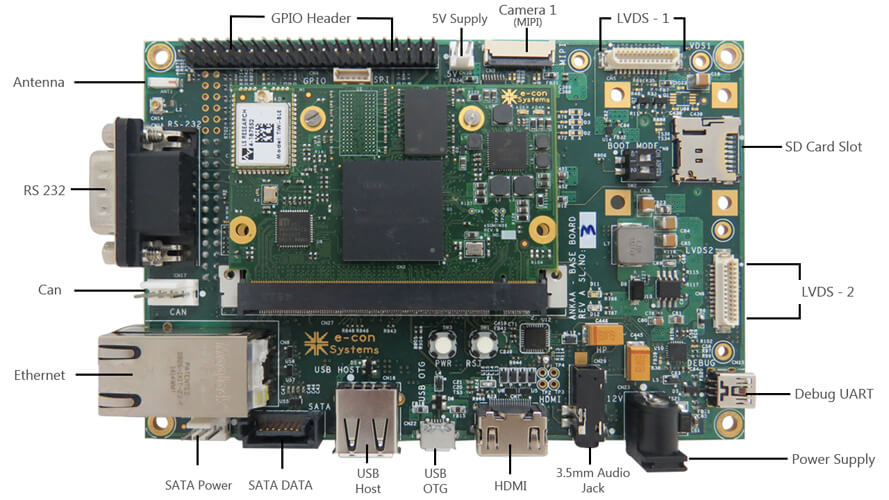

Ankaa – iMX6 development board

Ankaa i.MX6 development board

Download Ankaa i.MX6 development board documents:

pdf   Ankaa Hardware and Software documents

Ankaa i.MX6 development board kit contents:

  • eSOMiMX6 – iMX6 evaluation Kit with WEC2013: (With LCD)

    • Hardware:
      • eSOMiMX6 Module (eSOMiMX6-CS-P1G-F4G-R1G-WB-E)
      • Carrier board (Ankaa)
      • HDMI to HDMI Cable
      • USB to serial port cable
      • 9V Power Supply
      • 7 inch LCD with Capacitive touch
    • Software(WEC2013):
      • Preinstalled eboot
      • Preinstalled WEC2013 Image
      • WEC2013 BSP
  • eSOMiMX6 – iMX6 evaluation Kit with Linux: (Doesn't include LCD)

    • Hardware:
      • eSOMiMX6 Module (eSOMiMX6-CS-P1G-F4G-R1G-WB-E)
      • Carrier board (Ankaa)
      • HDMI to HDMI Cable
      • USB to serial port cable
      • 9V Power Supply
    • Software(Linux):
      • Preinstalled uboot
      • Preinstalled Linux Image
      • Linux BSP
  • eSOMiMX6 – iMX6 evaluation Kit with Android: (With LCD)

    • Hardware:
      • eSOMiMX6 Module (eSOMiMX6-CS-P1G-F4G-R1G-WB-E)
      • Carrier board (Ankaa)
      • HDMI to HDMI Cable
      • USB to serial port cable
      • 9V Power Supply
      • 7 inch LCD with Capacitive touch
    • Software(Android):
      • Preinstalled uboot
      • Preinstalled Android Image
      • Android BSP

Add on Boards:

5MP Camera board

5.0 MP MIPI Camera Board (ACC-iMX6-MI5640CAM)

ACC-iMX6-MI5640CAM is an Add on board to Ankaa i.MX6 RDK to evaluate e-CAM57_MI5640_MOD, a 5MP Autofocus MIPI Camera Module based on OV5640 image sensor.

User Manual

$69

Buy online

Excluding Shipment Charges

13MP Camera board

13.0 MP MIPI Camera Board (ACC-iMX6-CUMI1820CAM)

ACC-iMX6-CUMI1820CAM is a 13MP Camera board for e-con’s Ankaa i.MX6 RDK. This AR1820HS sensor based fixed focus Camera provides MIPI-CSI-2 interface to perform 1080p@30fps streaming. This is a custom lens Camera board with S-Mount lens holder.

User Manual

$249

Buy online

Excluding Shipment Charges

5MP Camera board

5.0 MP Camera Board (ACC-iMX6-5640CAM)

ACC-iMX6-5640CAM is an Add on board to Ankaa i.MX6 RDK to evaluate e-CAM52A_5640_MOD, a 5MP Autofocus Camera Module based on OV5640 image sensor.

User Manual

$99

Buy online

Excluding Shipment Charges

OEM Design Services

The Ankaa kit can be used as a rapid product development platform and customers can use this kit to test their application on the Linux/Android BSP provided by e-con. In addition to the BSP e-con provides reference schematics for the carrier board and hence carrier board design can be done in few weeks time thus enabling the customers to speed up time to market.

e-con takes product development services based on the eSOMiMX6 computer on module. Customers can also contact e-con systems for carrier board design based on eSOMiMX6 computer on module.

In addition to that e-con systems has also done Android, Windows CE and Linux BSP porting on the carrier board developed by the customers. Sometimes this has included Android / Linux / windows CE driver development too.

For all enquiries please write to sales@e-consystems.com
