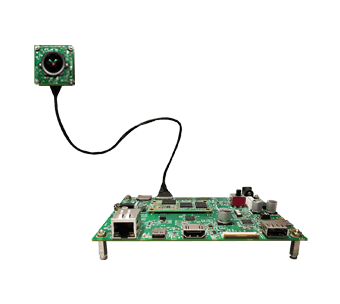

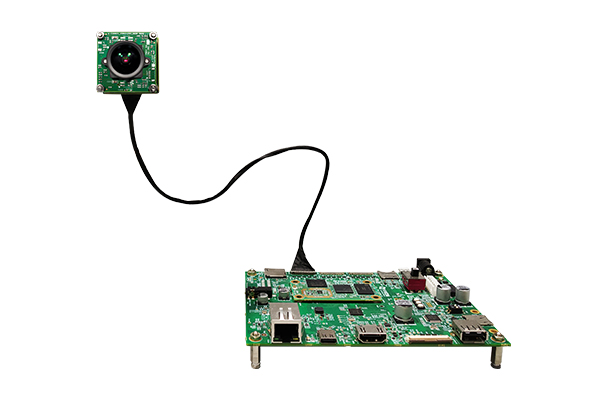

qSmartAI20_CUQ610 is a ready-to-deploy AI vision kit based on the Qualcomm® QCS610 processor with powerful AI processing capabilities. This Qualcomm vision kit comprises e-con's Sony IMX462 based Full HD MIPI CSI-2 camera module.
This AI vision kit has a small form factor and can perform all image processing and analytics indigenously without the connectivity or power of the cloud. In addition, this is a multi-camera solution enabling an extended field of view for applications that need to cover a large area or scene. e-con Systems provides all the necessary customization services for this vision AI development kit including the camera, carrier board, and software.
- System:
-
- Processor: Qualcomm® QCS610/410 SoC *
- Qualcomm® Kryo™ 460 CPU
- Kryo Gold: Dual high-Performance cores 2.2 GHz
- Kryo Silver: Hexa low-power cores 1.8 GHz
- Qualcomm® Adreno™ GPU 612 with 64-Bit Addressing; 845 MHz
- 4GB LPDDR4X SDRAM, 1866 MHz
- 16GB eMMC
- Camera:
-
- Full HD ultra low light camera based on Sony Starvis IMX462 sensor

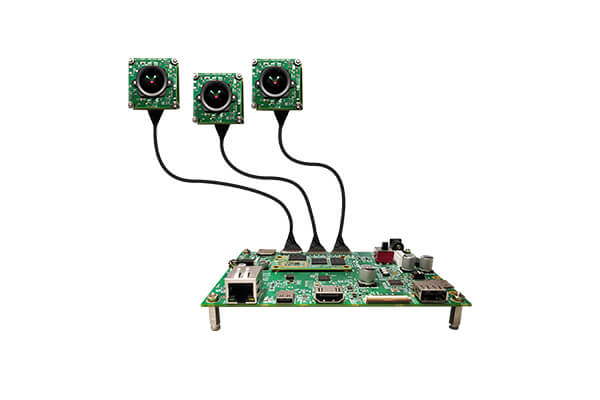

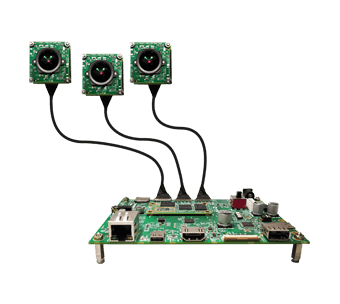

- Supports upto 3 cameras
- Frame Rate: 1080p @30fps
- Audio:
-
- Low power stereo codec with headphone out
- Two 2-bit MI2S port, One SLIMbus interface for BT audio, One single lane soundwire interface
- Network:
-
- Connectivity: Wi-Fi 2.4GHz/5Ghz, bluetooth, ethernet
- RF Interface: 1 x U.FL, 50 ohm coaxial connectors
- Interfaces:
-
- Three 4-lane MIPI CSI for camera interfaces
- MIPI DSI One 4-lane MIPI DSI display interfaces
- 1xUSB3.1,USB2.0(Type C) 1x USB 2.0 (Host only)
- One 4-bit Secure digital interface (SDIO)
- Module features:
-
- Sensor: Sony STARVIS® IMX462
- Focus Type: Fixed focus
- Sensor Resolution: Full HD
- Chroma: Color
- Frame Rate: 1080p @30fps
- Shutter type: Electronic Rolling Shutter
- Optical Format: 1/2.8"
- Output Format: 10bit RAW Bayer
- Pixel size: 2.9 μm x 2.9 μm
- Holder: M12 (S-Mount)
- Electrical & Mechanical:
-
- Power Supply: 12V DC
- Size in mm
- l x b: 55 mm x 35.5 mm (SOM)
- l x b: 140 mm x 100 mm (Carrier Board)
- l x b: 30 mm x 30 mm (Camera board)
- Board weight:
- Development kit: 99 Grams
- Development kit + Camera (without lens): 113.5 Grams
- Development kit + Camera (with lens): 119.5 Grams
- Miscellaneous:
-
- Compliance: RoHS
- Launched on:
- Note: The technical information is subject to change
- * - The default vision kit comes with QCS610 based SoM Please write to camerasolutions@e-consystems.com in case you are looking for a QCS410 based solution.
- gstreamer based camera application for
-
- HDMI streaming (NV12)
- Network streaming over ethernet and WIFI (H.264 encoded)
- Snapshot image capture in JPEG and RAW bayer
- H.264 encoded video recording
- Modifying camera features like White balance, gain, exposure etc.
- AI software stacks
-
- Qualcomm neural processing SDK for AI
- Neural network API (TFLite models)
- GStreamer plugin (DLC models)
- GStreamer TFLite plugin
- Please contact camerasolutions@e-consystems.com for all necessary customization services for this vision AI development kit including camera, carrier board, and software customization.
- VVDN SOM based on Qualcomm® QCS610 SoC
- Carrier board
- SONY IMX462 camera with lens
- Micro coaxial cable
- Please contact us for all necessary customization services for this vision AI development kit including camera, carrier board, and software customization.
e-con provides customization for the following requirements:
- Do you need to connect other e-con cameras?
- Do you need assistance in choosing lens?
- Do you need BSP customization?
- Do you need different peripherals in carrier board?
- Do you need to develop a ML and DL algorithms?
- Please contact us for all necessary customization services for this vision AI development kit including camera, carrier board, and software customization.
