8MP (4K) AR0830 USB 3.2 Gen 1 Camera (Color)

Overview

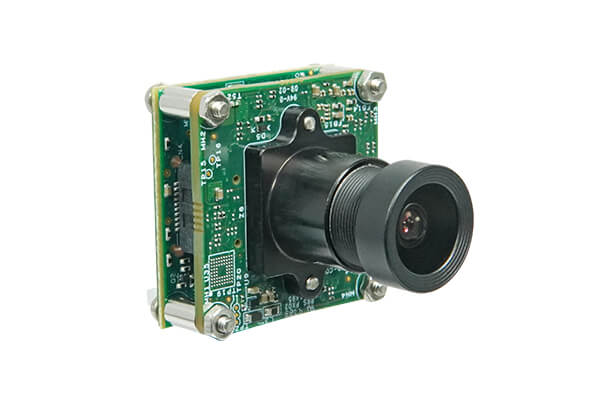

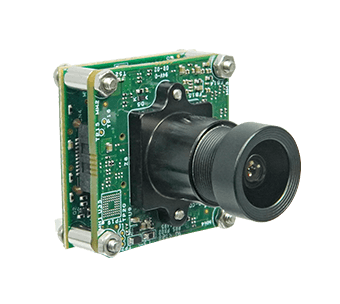

See3CAM_CU84 is a fixed-focus USB 3.2 Gen 1 superspeed camera - housing the e-CAM85_CUMI0830C_MOD, an 8 MP camera module with a reversible plug-and-play type-C interface. It is equipped with the 1/2.9" onsemi® AR0830 electronic rolling shutter image sensor combined with onboard high-performance ISP - supporting 4K @ 15 fps and Full HD @ 60fps. The camera's wake-on-motion/motion detection feature allows it to detect visible motion.

See3CAM_CU84 can video stream through UVC without any special drivers and is backward compatible with USB 2.0 hosts. With supporting UVC and HID controls, this USB camera produces an uncompressed UYVY image format. It incorporates a standard M12 lens holder, allowing customers to use customized optics or lenses to suit their specific application needs.

Specifications

Key features:
- Frame Rate: Full HD at 60 fps & 8MP (4K) at 15 fps
- Output format: Uncompressed UYVY
- Supported OS - Windows 10/11, Linux 16.04, 18.04 & 20.04 (64-BIT ONLY)
- Unique ID for each camera
- Lightweight, versatile, and portable two-board solution
Interface:
- Interface: USB 3.2 Gen 1 device
- Connector: Type-C reversible interface connector
- UVC complaint - no additional drivers required
- Backward compatible with USB 2.0 hosts
Module Features:
- Sensor: AR0830 from onsemi®
- Focus Type: Fixed focus
- Sensor Resolution: 8MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.9"
- Output Format: Uncompressed UYVY
- Pixel Size: 1.4μm x 1.4μm Back Side Illuminated (BSI)
- Sensor Active Area: 3840 (H) x 2160 (V)
- Array Size: 3840 (H) x 2160 (V)
- SNR: 39.9 dB
- Dynamic Range: 73 dB
- Holder: M12 (S-Mount)
- FOV: 83.08°(D), 73.44°(H), 45.56°(V) (with the lens provided by e-con)
Electrical & Mechanical:
- Operating Voltage: 5 V +/- 5%
- Operating Temperature Range: TBD
- Power requirements: 2.250W
- Size in mm (l x b): 30 x 30 mm
Miscellaneous:
- RoHS
For Android or MAC OS support, please contact camerasolutions@e-consystems.com
* - Not available with the off-the-shelf version. Please contact camerasolutions@e-consystems.com for more details.

Software

Supported OS - Windows 10/11, Linux 16.04, 18.04 & 20.04 (64-BIT ONLY)
Sample Application :
- e-CAMView – Windows Camera application for Video Preview and Still Capture.
- QtCAM – Linux Camera application for Video Preview and Still Capture.
UVC Controls :
- Brightness
- Contrast
- Saturation
- Sharpness
- Gain
- Exposure (Auto & Manual)
- Gamma
- Powerline Frequency
- White Balance (Auto and Manual)
- Roll
Note: Customers interested to work on Android would require e-con SDK (Webeecam).The specs mentioned above shall not be the same for Android. For Android or MAC OS support, please contact camerasolutions@e-consystems.com

Documents

Customization

See3CAM_CU84 – Customization

Do you need a Custom lens mount (C-mount/CS-Mount)?
Do you want a smaller form factor solution?
Do you need LED flash?
Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
