e-CAM22_CUiMX8 - Sony Starvis IMX462 Ultra-Lowlight Camera for i.MX8 Processors

Toradex Cameras

Highlights:

  • Houses e-CAM231_CUMI462_MOD Full HD Sony Starvis™ Camera Module with S-mount lens holder
  • Ultra-Low light performance
  • Plugs directly into Toradex® Verdin carrier board based on iMX8M Plus SoM

Sample Price

ContactUs

Documents

Download Document

e-CAM22_CUiMX8 is a Full HD custom lens camera module based on 1/2.8" Sony Starvis IMX462 CMOS image sensor. It is a color camera that supports UYVY image format and provided with S-mount (also known as M12 board lens) lens holder.

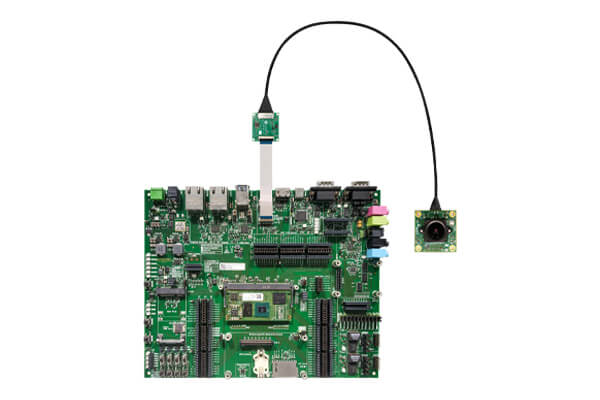

This camera can be directly interfaced with the Toradex off-the-shelf Verdin development kit. The camera board is connected to the adaptor board through a micro coaxial cable. This adaptor board acts as a bridge between the camera module and the Toradex development kit. e-CAM22_CUiMX8 can stream uncompressed VGA at 60 fps, HD at 60 fps, FHD at 60 fps.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Streams HD @ 60 fps & Full HD @ 60 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY streaming
    • High speed 4-lane MIPI CSI-2 interface
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable multi-board solution
  • Interface:
    • Interface: 4-Lane MIPI CSI-2
    • Connector: 24pin FPC connector
    • Cable length: 30cm
  • Sensor features:
    • Sensor: IMX462 from Sony® Starvis
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/ 2.8"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 2.9 μm x 2.9 μm
    • Sensor Active Area: 1920H x 1080V
    • Array Size: 1920H x 1080V
    • G Sensitivity: 2376mV for HCG mode; 921mV for LCG mode
    • Holder: M12 (S-Mount)
    • FOV: 132°(D), 113°(H), 61°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to +70°C
    • Typical power consumption: 1.31W
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
Linux camera driver:

e-con Systems provides sample applications that demonstrate the features of this camera. However, this camera can also be utilized by any V4L2 application.

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet

Download Full HD GMSL2 Camera Documents

Kit contents:
  • e-CAM231_CUMI462_MOD - Full HD Sony Starvis™ Camera Module with Lens
  • Adaptor board
  • IPEX Cable (30cm)
  • FPC cable (15cm)
  • Please contact camerasolutions@e-consystems.com for any customization or porting of the camera driver to your requirements.
