PXA270 Development Board

Regulus - eSOM270 Reference Design

The Regulus PXA270 Development Board is a multi board solution which features a piggy back eSOM270 - computer on module and carrier board. The computer on module consists of XScale® PXA270 ultra low power microprocessor, SDRAM flash memory plus a power management IC. The Customers can choose to design carrier boards according to their needs and use the PXA270 computer on module. The Regulus platform comes up with a reference carrier board to this system on module having interfaces for almost all the peripherals supported by the PXA270.
Windows CE 6.0   Embedded linux

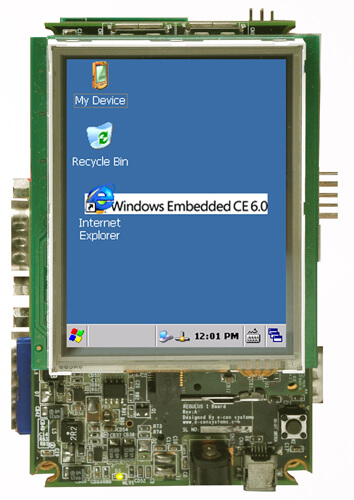

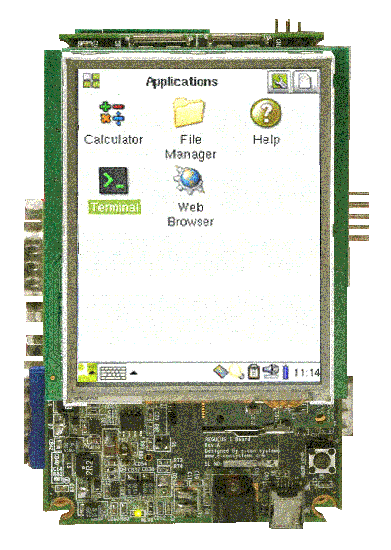

Rapid development kit running Windows CE 6.0 R2 Rapid development kit running Linux + Qt
Click to view larger image

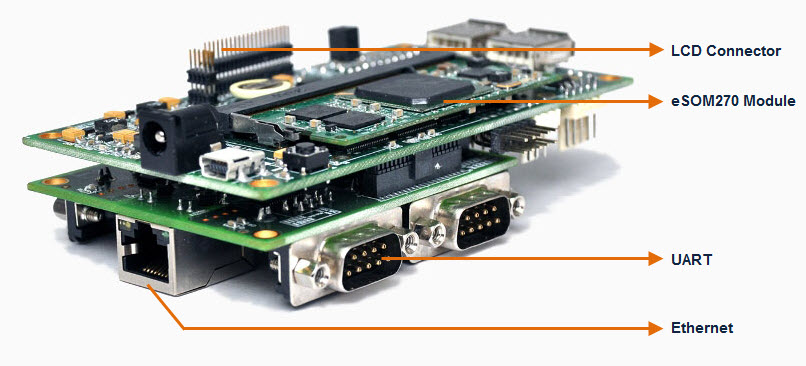

Regulus Platform - eSOM270 Carrier board

Features of Regulus - eSOM270 Evaluation Kit

  • eSOM270 - PXA270 Computer on Module
        @ 520 MHz / 128 MB SDRAM / 32 MB Flash

  • Nand Flash 512 MB

  • Display
    • VGA Interface board
    • LCD module with Touch screen
      • 4.3” TFT - Supports 480x272
      • 7” TFT - Supports up to 800x480
  REGULUS SPECIFICATION
 Regulus - Kit Contents
  Hardware
    - eSOM270 Module
    - Carrier board
    - JTAG
    - USB ActiveSync Cable
    - LCD Daughter card with
       4.3" / 7" TFT
    - Touch Screen
    - Stylus
    - Power Supply

Kit - Contents

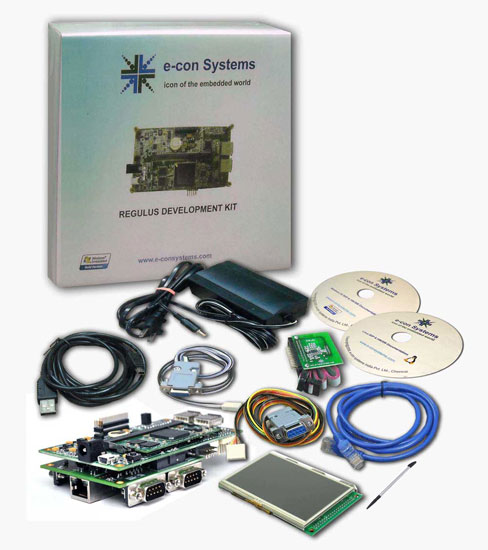

Regulus - Kitcontents
Click to view larger image
  Software
    - Preinstalled eboot/uboot
    - Preinstalled Linux ( Ångström       Distribution) / Windows CE Image
    - Linux BSP 2. 6. 25 (optional)
    - Windows CE 6.0 R2 BSP

  Documents
    - Regulus Datasheet
    - Carrier board Reference schematics
    - Linux Regulus Developer resources
    - WinCE Regulus Developer resources
computer on module pricing
 Regulus - Target Applications

   - Platform for rapid product development
   - Reference design for handheld data
     logging terminals.
 Article

   - Choosing a Right COM Partner

  • Connectivity
    • 10/100 Ethernet Port

  • Serial Ports - 7
    • 7 RS232 Level UARTs

  • USB
    • 2 Host Ports
    • 1 Client Port

  • Digital Video
  • Miscellaneous
    • I2C
    • SPI

  • SD/MMC Card Support
  • Expansion Bus Interface
  • Real Time Clock (with Battery backup)
  • Upto 40 User Configurable GPIOs
  • 1 User Configurable LED
  • Dimension - 114 mm (L) X 65 mm (B)
  • Operating Temperature: -25 to +85 °C
  • 12V DC Supply
Download eSOM270 Rapid development Kit Datasheet Regulus Specifications

Rapid development kit + Quad UART
Windows CE Regulus Developer resources
Linux Regulus Developer resources

The Regulus kit can be used as a rapid product development platform and customers can use this Regulus kit to test their application on the Windows CE BSP or Linux BSP provided by e-con.

In addition to the BSP e-con provides reference schematics for the carrier board and hence carrier board design can be done in few weeks time thus enabling the customers to speed up time to market.
