e-CAM32_OMAP_GSTIX - Camera Solution for GumStix’s Overo Series Linux Computer on module
Microsoft Gold Partner


The e-CAM32_OMAP_GSTIX expansion board is e-con Systems' 3.2 Megapixel camera board which works plug and play with every Gumstix® Overo™ computer-on-module (COM).

The Gumstix Overo series of computers on modules includes the Earth COM (OMAP3503), Overo Air COM (OMAP3503), Overo Water COM (OMAP3530) and Overo Fire COM (OMAP3530). Each Gumstix Overo COM is powered by a Texas Instruments' (TI's) OMAP Applications Processor and has the same 27 pin header to which the e-CAM32_OMAP_GSTIX can be interfaced.

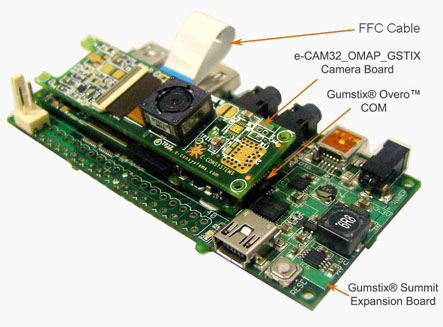

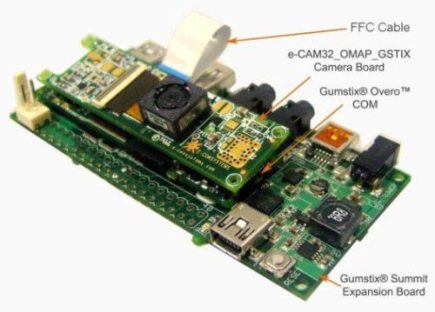

OMAP_Overo Camera Board


 e-CAM32_OMAP_GSTIX Features

 Max QXGA (2048 x 1536) resolution with

  • 30fps upto XGA and
  • 15fps above XGA.
 V4L2 Linux Driver
 Video capture upto VGA at 30fps with continuous focus
 Viewfinder option with video preview at 30fps
 e-CAM board Dimensions : 17mm x 58mm
 Plugs in to the camera interface of TI OMAP processor
  on the GUMSTIX's Overo COMs


CAMERA MODULE FEATURES

Omnivision OV3640 - 3.2 Mega pixel
  CMOS Image sensor
Focus Type – Auto Focus
Maximum Image transfer Rate

  • OXGA - 15 fps
  • XGA   - 30 fps
View Angle - 65° Diagonal
Output Format - YUV/YcbCr 4:2:2
Object Distance - 10 CM to Infinity
Temperature Range

  • Operation - -20° to 70° C
  • Stable Image - 0° to 50° C
Power requirements

  • Active - 50mW (15 fps)
  • Standby - 30 µW
Module Size - 10.0 x 10.0 mm
Lens Size - 1/4 "
RoHS Compliant
S/N Ratio - 36 dB
Dynamic Range - 60 dB


Camera Application Demo

3.2MP Camera Sensor module
3.2 MP Camera Sensor module
  LINUX FEATURES


 V4L2 Support
 Complete Source code of device driver
 Sample application with source for image  capture at different resolutions
 Support for white balance, autofocus
 Support for OMAP ISP(IVA2.2) features  such ,as color correction, gamma correction
  resizing



The TI OMAP35x processors offer tremendous processing power thanks to the Superscalar ARM Cortex-A8 core running at 600MHz. The higher end variants of this CPU (OMAP3525 and OMAP3530) support a C64x DSP and Video accelerator making it an ideal CPU for high-end real-time image processing. The OMAP 3503 or the OMAP 3530 Applications Processor power each of the four Gumstix Overo COMs. The Linux camera driver closely integrates with the IVA2.2 (Image, Video and Audio Subsystem) Accelerator subsystem. This enables the application developer to fully utilize the advanced features available in the OMAP35x CPU.


  OMAP 35x ISP support



On the Camera ISP backend, the camera module e-CAM32_OMAP_GSTIX nicely integrates with the 8-bit parallel camera interface. This interface can support up to 130MHZ for 8-bit parallel camera data. With this clock, e-con has achieved capturing of video at 30fps at D1/VGA resolution from the e-CAM32_OMAP_GSTIX camera daughter board

  Evaluation Kit

  The e-CAM32_OMAP_GSTIX evaluation kit can be bought by customers choosing to evaluate the e-CAM32_OMAP_GSTIX camera solution with Gumstix's Overo series of Computer on Modules. Customers would need to have the Gumstix Overo module for interfacing the e-CAM32_OMAP_GSTIX camera board. Please see the kit contents on the right. Customers who have bought development boards based on OMAP i.e. other than Gumstix's Overo and would like to integrate the e-CAM32_OMAP_GSTIX Camera on their boards can also check with e-con for support. For all enquiries please write .




   e-CAM32_OMAP_GSTIX Documents
US$99
Excluding Shipment charges
