e-WiB : Bluetooth WiFi Board : Embedded WiFi Bluetooth OEM Module : Daughter Board

	Introduction
	e-WiB is e-con Systems� new ready to use Wi-Fi Bluetooth Add-on module based on Marvell 88W8688 (Marvell 8688) that provides full function of 802.11b/g and Bluetooth class 2.1 EDR. e-WiB is multi- functional, board to board physical interface providing SDIO/SPI interface for Wi-Fi and UART/SDIO interface for Bluetooth.

	The module is designed as single antenna for WiFi and Bluetooth

	The small size and low profile physical design makes it easier for system design to enable high performance wireless connectivity without space constrain. The low power consumption and excellent radio performance makes it the best solution for OEM customers who require embedded 802.11g WiFi + Bluetooth features, such as, Wireless PDA, slim type Notebook, VoIP phone etc.

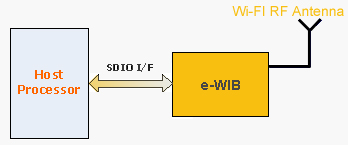

	e-WiB � Wi-Fi Bluetooth Module	e-WiB – Block diagram

	Product Specifications

e-WiB Datasheet

	Related Links

	PXA300 Computer on module

	Alioth - PXA300 Reference design

	Interfacing e-WIB with e-con's Alioth - PXA300 Reference design

	Targeted Application

	Wireless PDA
	Vehicle Mount Systems
	Mobile devices
	MIDs WebPads

	Based on Marvell 88W8688 with full function of 802.11b/g and Bluetooth class 2.1 EDR.
	Module Interface Type - WLAN SDIO 4-bit Interface
	Multi- functionality and board to board physical interface provides SDIO/SPI interface for WiFi and UART/SDIO interface for Bluetooth
	Standard WLAN: 802.11 b/g Bluetooth: Bluetooth 2.1 + EDR; Bluetooth Class 2
	Operating Frequency - 2.4 GHz ISM band
	Low power consumption and excellent radio performance.
	Windows CE 6.0 R3 Device driver available.

Evaluation Kit

Customers interested in e-WiB – WiFi + Bluetooth module can evaluate the same using e-con’s readily available Alioth - PXA300 reference design. e-con provides Windows CE 6.0 R3 Device drivers for e-WiB along with the Alioth platform.

For more details of using Alioth platform, please click to see application note - "Interfacing e-WIB with e-con's Alioth - PXA300 Reference design".

PXA300 reference platform features a carrier board around the eSOM300 - Computer on Module and has all the peripherals supported by eSOM300 exposed through various connectors.

Also Customers can buy the e-WiB modules and directly integrate on their target platform.

Click to Zoom

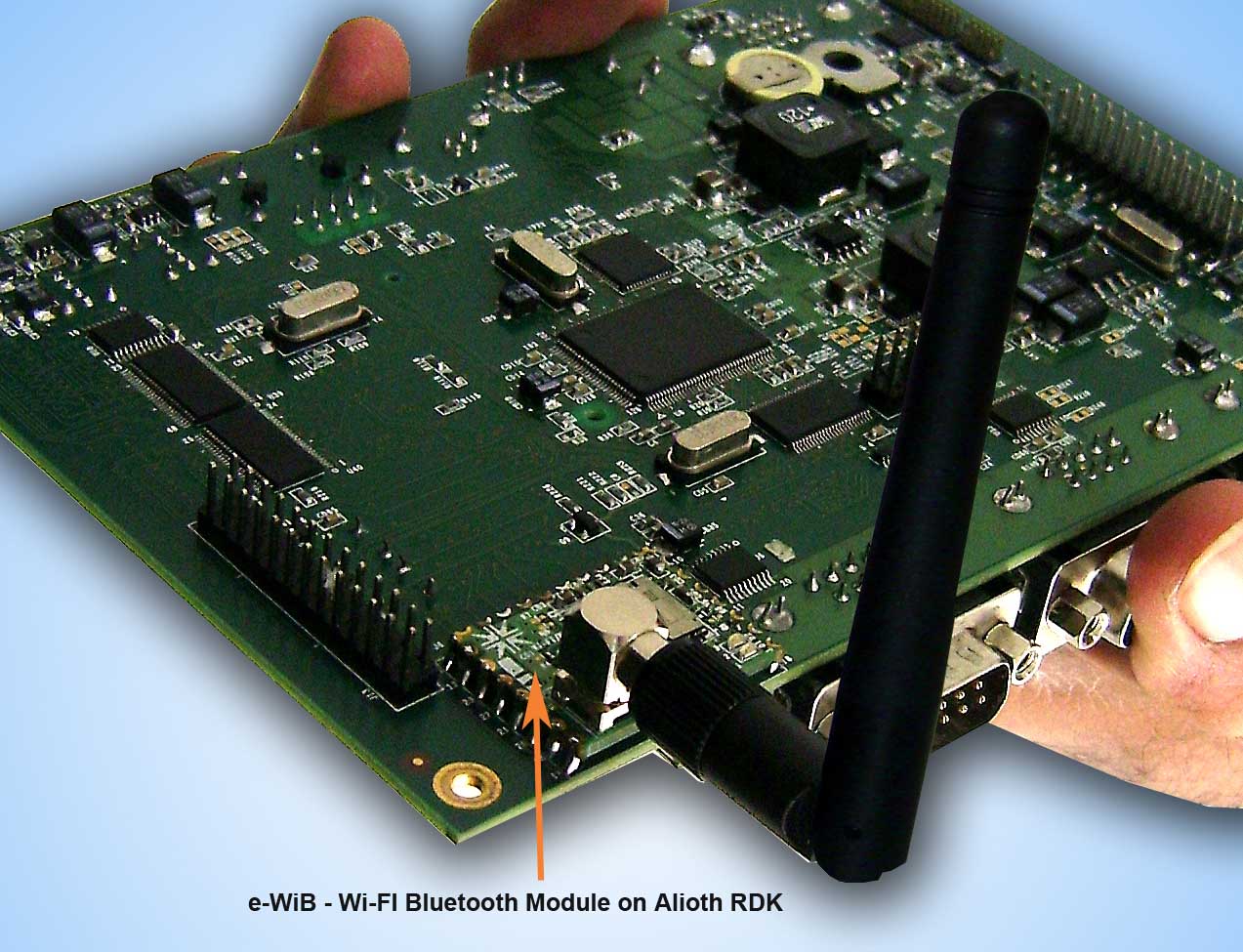

e-WIB connected to Alioth

For additional information, please write to
