The Alioth PXA300 Development Board is a dual board solution which features a piggy back eSOM300 - computer on module and carrier board. The computer on module consists of XScale®/ARM PXA300 ultra low power microprocessor, MDDR SDRAM, flash memory, power management IC, LCD Daughter card with 4.3" / 7" TFT, Ethernet, Camera Interface.


Alioth Running Android		Demo: Android on e-con's Alioth

Xscale development board running Windows CE 6.0 R3

Alioth Running Windows CE 7.0

Alioth Platform - eSOM300 Carrier Board

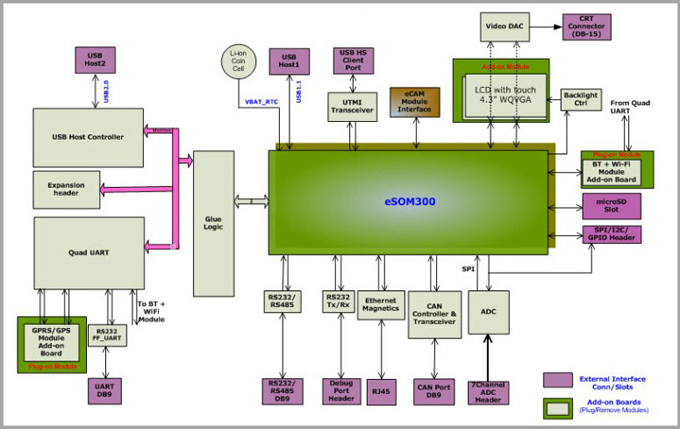

Alioth - Block Diagram

�

US$ 399

Alioth - Developer Resources

    - Android Developer resources
    - WinCE 7 Developer resources
    - WinCE 6 Developer resources

Alioth - Kit Contents

  Hardware
    - eSOM300 Module
    - Carrier board
    - USB ActiveSync Cable
    - LCD with touch       4.3"/7" (Optional)
    - Stylus
    - Power Supply

Click to view larger image

  Software
    - Preinstalled eboot / uboot
    - Preinstalled WinCE / Android /
      Linux (Ångström Distribution) /
    - Android / WinCE 7.0 / 6.0 R3
      or Linux 2.6.34 or Android BSP

  Documents
    - Alioth Datasheet
    - Carrier Board Reference       Schematics
    - DXF Files
    - HW Developer resources
    - Android Developer resources
    - WinCE 7 Developer resources
    - WinCE 6 Developer resources
    - Linux Developer resources

	Testimonials

"After several discouraging attempts to develop a PXA300 platform for one of our products I tried the e-con Systems Alioth eSOM300 module." Read more

Robert Newmark, Chief Engineer, Skylink Technology, Inc.

Features of Alioth - eSOM300 Evaluation Kit

Alioth Specifications

eSOM300 - PXA300 Computer on Module
    624 MHz XScale PXA300 Processor
    128 MB Mobile DDR SDRAM
    256 NAND Flash
    Power Management IC
    AC97 Audio Codec with Touch
    Ethernet Controller
    RTC
Part# eSOM300-P624-R128-F256-E-C-B-AT
CAN Controller
DISPLAY

CRT (Analog VGA)

LCD module with Touch screen (optional)

4.3” TFT - Supports 480x272
7” TFT - Supports up to 800x480

Connectivity

10/100 Ethernet Port
Wi-Fi and Bluetooth (add-on module)
GPRS/GPS (add-on module)

Serial Ports

6 RS232
1 RS232 / RS485

USB
- 2 Host Ports (1.1 & 2.0)
- 1 Client Port - USB 2.0
Digital Video

Camera - 3.2 Mega pixel add-on module (QCI)

Miscellaneous
- I2C
- SPI
SD/MMC Card Support
1 Wire Interface
Expansion Bus Interface
8 Channel ADC
Upto 40 User Configurable GPIOs
Dimension - 160 mm (L) X 105 mm (B)
Power Supply 9V - 32V DC

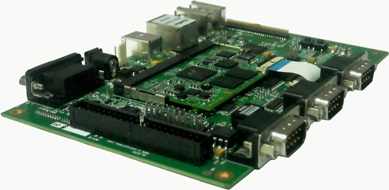

PXA300 reference design - eSOM300 carrier board

Click to zoom

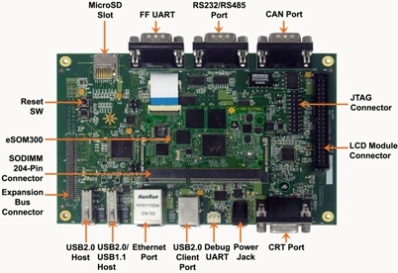

Front View - Click to zoom

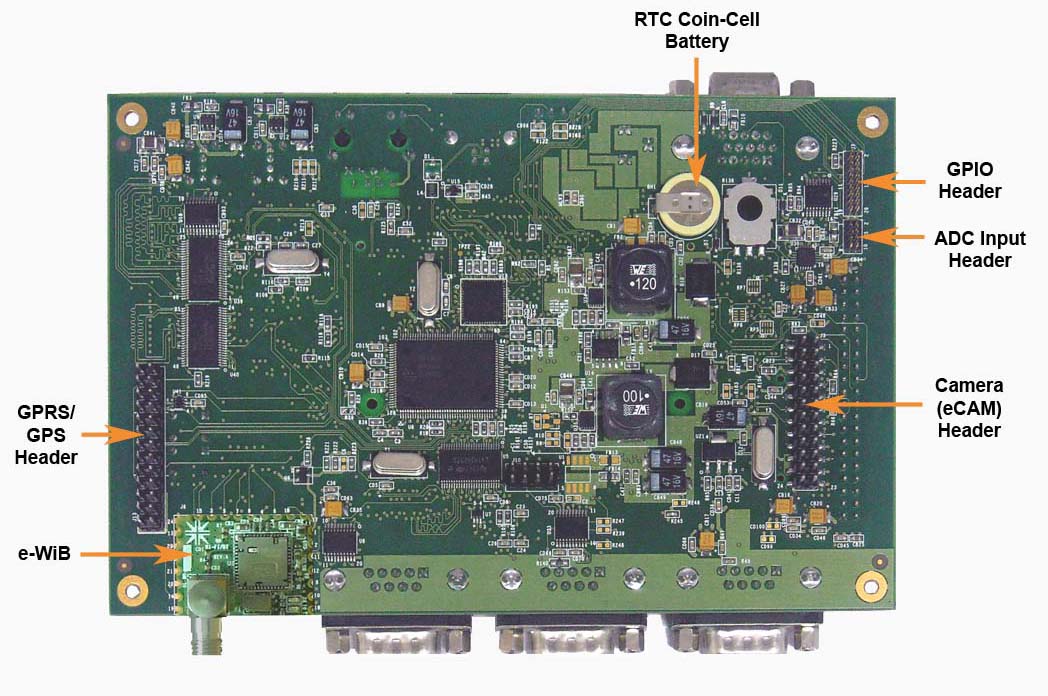

Back View - Click to zoom

Hardware Developer resources

Android Developer resources

WindowsCE 7.0 Developer resources

WindowsCE 6.0 Developer resources

Linux Developer resources

The Alioth kit can be used as a rapid product development platform and customers can use this kit to test their application on the Android, Windows CE BSP, Linux (Ångström Distribution) provided by e-con. In addition to the BSP e-con provides reference schematics for the carrier board and hence carrier board design can be done in few weeks time thus enabling the customers to speed up time to market.
