eSOM300™ Computer on Module
  +1-636-898-8788
Download Computer on Module Specification   eSOM300 SPECIFICATION
Windows Embedded Gold Partner


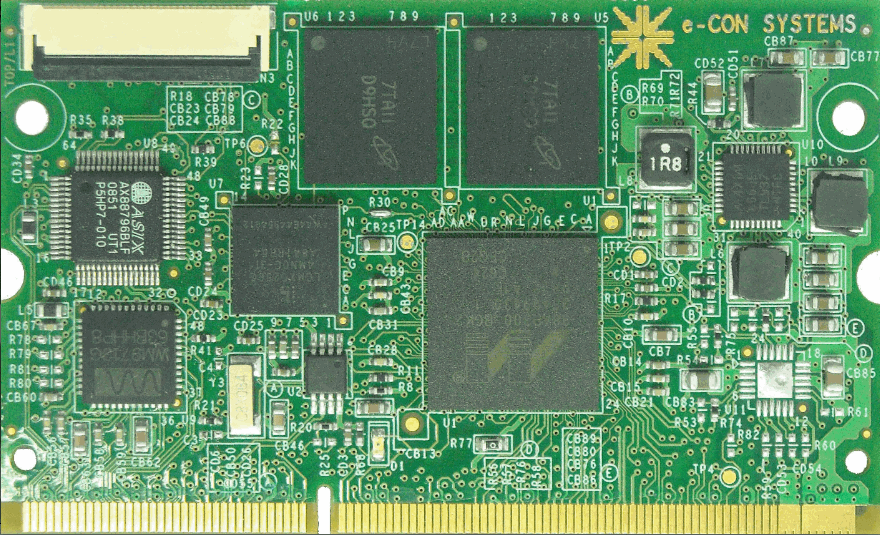

eSOM300 is the latest edition to the eSOM family of computer on modules of e-con Systems, which is based on XScale®/ARM PXA300 application processor from Marvell and is an ideal choice for embedded applications requiring a combination of low power consumption and mid-range processing and GUI performance, both in consumer and industrial environments.


eSOM300 offers great flexibility and scalability as it can be configured according to the customer’s requirement i.e. eSOM300 run on PXA300 CPU based on the ARM architecture which can be scaled up to 624MHz, mobile DDR SDRAM configurable from 64MB to 256MB and NAND flash configurable from 128MB to 1GB and Power Management IC (PMIC). In addition, eSOM300 carries Ethernet, Audio Touchscreen, RTC and Battery Charger on board which again are optional components and hence making it highly flexible module, a unique feature in it’s category.


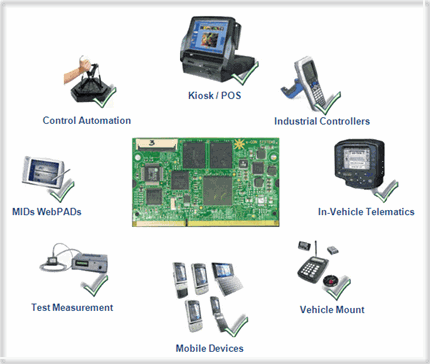

 eSOM300 Applications


System on Module
General Features
Higher processing speeds with Marvell (formerly Intel)
  XScale PXA300 @ 208/624 MHz
64/128/256 MB Mobile DDR SDRAM
  - ultra low power memory
128/512/1GB NAND Flash
AC97 Audio Codec with Touch Screen (optional)
10/100 Ethernet Controller with PHY (optional)
Real Time Clock (optional)
Battery Charger (optional)
Power Management IC
Local Bus Expansion Header
SODIMM204 pin socket
Operating temperature – -25 degrees to +85° C
Power: 20 mW @ sleep mode & 2W at full running mode
Module Dimensions: 67.6mm x 41mm
Availability -Until December 2018 (Minimum)
Buy computer on module

  Interfaces Supported on eSOM300 Computer on Module

   Article


   Related Links
    eSOM270 – PXA270 COM
    Regulus – PXA270 COM RDK
    Alioth – PXA300 COM RDK
USB Host (x2) LCD Controller - 800 x 600
USB 2.0 HS Client 3 Serial Ports
SPI interface (x2) 4 PWM
MMC/SDIO interface (x2) 6 x 5 Keypad Interface
Camera Interface Upto 40 GPIOs
I2C Interface 1 Wire interface
3.3V to 5V Ethernet Interface
Local bus expansion bus header Battery Charger

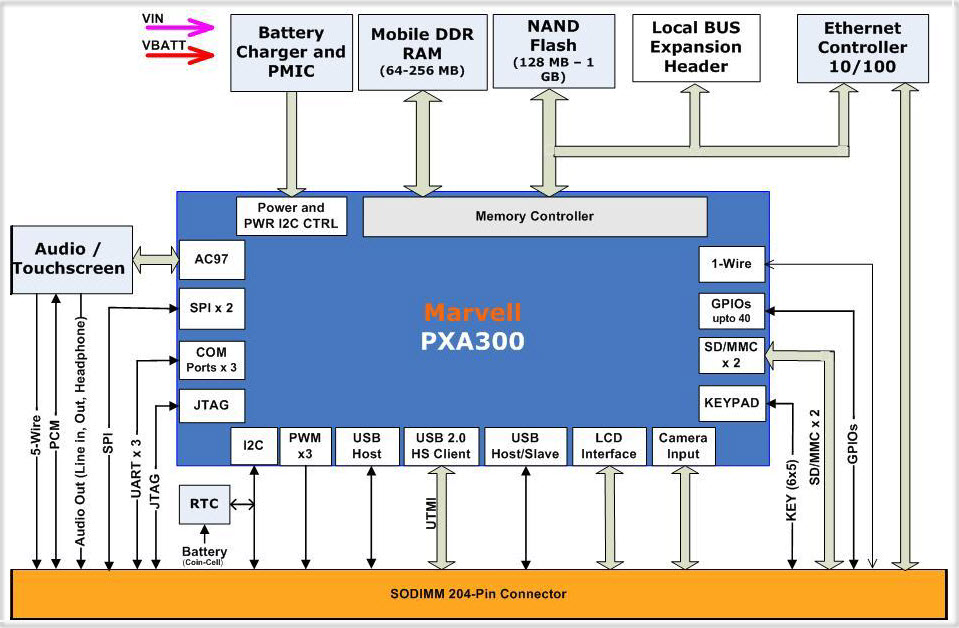

  eSOM300 Block Diagram Download Computer on Module Specification   eSOM300 SPECIFICATION

PXA300 Computer on Module Block Diagram
Alioth Rapid Development Kit:


e-con provides a Rapid development kit for eSOM300 called Alioth. This platform features a carrier board around the eSOM300 XScale/ARM Computer on Module with peripherals supported like CAN controller, 8 channel 16 bit ADC controller, Analog VGA, USB 2.0 host and RS485. Also includes Ethernet, Touch screen, SDIO, SPI, I2C, LCD controller, 3 UARTs, 1 wire, local bus expansion, USB high speed client, camera interface. Optionally, customers can choose to have a LCD of 4.3" (480x272) / 7" (800x480) with Touch screen.

As a part of rapid development kit, e-con Systems provides detailed schematics, hardware user manual, Bill of material, application notes to help the customers design their custom board faster and therefore speed up the time to market..

e-con Systems provides Windows CE 6.0 R3 BSP/ Linux 2.6.34 (Angstorm Distribution) with device drivers for all the peripherals.

For more information, please visit Alioth Web Page.

   Advantages of eSOM300

  Scalability

  Flexibility

  Expandability

   - eSOM300 Module, Carrier board      and VGA/LCD
   - Windows CE 6.0 R3 BSP, Linux      2.6.34 (Ångström Distribution)

Follow e-con on Facebook! Follow e-con on Youtube! Follow e-con on Twitter!

RoHS Compliance Buy computer on module
 eSOM270 Specification PDF eSOM300 SPECIFICATION   Download computer on module Specification
This computer on module is eco-friendly and all the components used are lead free. In Addition e-con Systems offers RoHS Compliant parts, products and devices.
