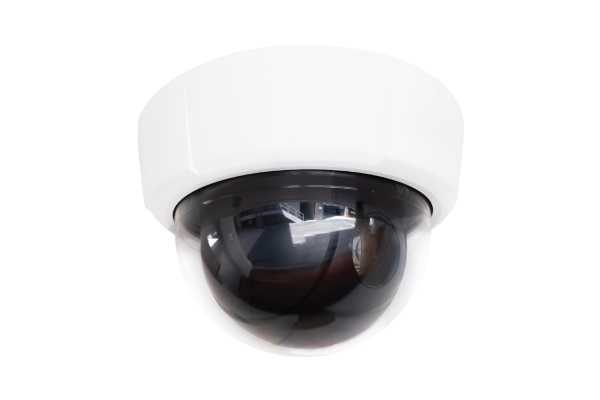

4K AI Dome Camera
- Max. 4K resolution
- Maximum 30fps@4K (H.265/H.264)
- ONVIF Compliant (profile S T G)
- IR Distance 50m
- IP Rated enclosure
- PoE / 12V DC
- SD Card (Up to 512GB)
- In-built Microphone
- Support PTZ functionality
- Privacy Masking (Person/Vehicle)
- Analytics events based on AI engine (NPU)
- Motion detection

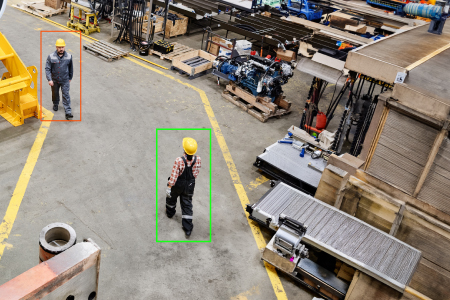

- Object detection (Person/Vehicle)
- Virtual line(Crossing/Direction)
- Virtual area(Loitering/Intrusion)
- Support CloVis Central™ cloud-based device management.
Datasheet:
DownloadTo Evaluate Samples:
Contact UsAdvantages
Seamless Integration & Scalability
Fewer False Alarms
Long-term Cost Saving through Edge AI
Low Bandwidth Utilization
Technical Specifications
| Specifications | |
|---|---|
| Image Sensor | 1/2.8 CMOS |
| Max Resolution | 3840(H) × 2160(V) (4K) |
| Intelligent Video Analytics | AI based Motion detection |
| Day/Night Performance | True Day/night (IR cut filter) |
| IR Distance | 50 m |
| Image Settings | Digital image effects: flip, mirror and corridor. Manual/Auto White balance. Gain control. Electronic shutter speed. Day/night mode. Dynamic Noise Reduction (3 DNR). Motion detection (5 programmable zones). Anti-flicker. |
| Lenses (Multiple options) | |
|---|---|
| Focal Length | 3–9 mm Varifocal |
| Additional Features | Digital PTZ |
| Zoom/Focus/Iris Adjust | Flexible Viewing with 3X Optical Zoom |
| Field of View Horizontal | 102° - 28° |
| Features | |
|---|---|
| Network | 10/100/1000 Mbps Ethernet |
| Image Compression | H.264; H.265 |
| Protocols | DHCP, FTP, HTTP, HTTPS, IPv4/6, LDAP, NTP, RTSP/RTP, RTMP, SMTP, SNMP 2c/3, TCP/IP, UDP, 802.1X, SSL, Network Protocols, Firewall, DDNS; IEEE 802.1X |
| Streams | Quad streaming |
| Cybersecurity & Safety | EN 303 645 Safety Certifications, STQC, FIPS-140 compliant cryptographic engine. |
| Electrical | |
|---|---|
| Input Power | DC 12V ±10%, PoE (IEEE 802.3af), POE / external power (pigtail cable) |
| Power Consumption | 2 W – 10 W |
| Controls & Connectors | |
|---|---|
| Connectors | Pigtail Cable Assembly:
|
| Environmental | |
|---|---|
| Operating Conditions |
|
SIPHAI_DZ800 - Documents
DownloadTarget Applications
Certifications
