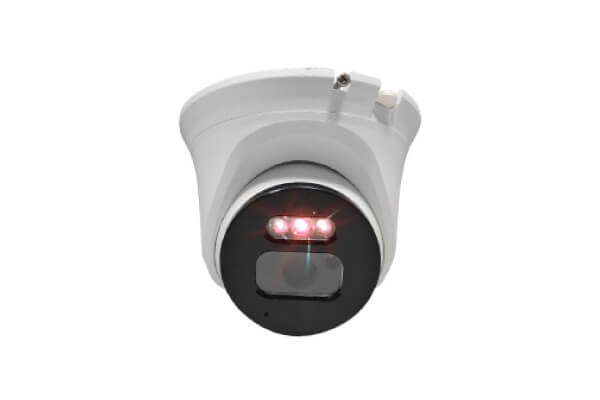

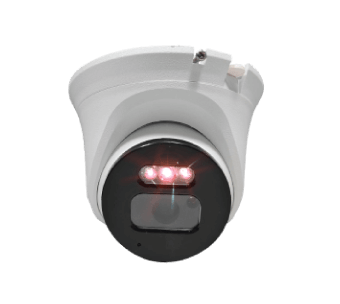

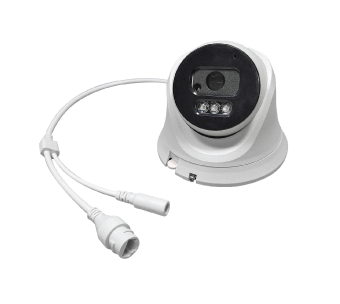

5MP AI Turret Camera

e-con Systems 5MP Turret Camera is a compact, AI-powered surveillance solution designed to deliver superior image quality and intelligent video analytics for modern security needs. With a maximum 5MP resolution at 30fps and advanced H.265/H.264 compression, it ensures high-quality video streaming with optimized bandwidth efficiency.

Engineered for reliable performance in diverse environments, the camera features day & night (ICR) support, WDR (85dB), and IR illumination up to 10m (32ft)—delivering clear images even in low-light conditions. Its IP-rated turret enclosure ensures durability and protection for both indoor and outdoor deployments.

Download
Contact Us

Highlights

Resolution

5MP @ 30fps

IP Rated

IP-Rated Enclosure

SD Card (Up to 256GB)

Onboard storage

IP Rated

ONVIF Compliant

output format

H.264 / H.265 Format

PoE / 12V DC

PoE Support

Day & Night

Onboard NPU

Advantages

Seamless Integration & Scalability
Fewer False Alarms
Long-term Cost Saving through Edge AI
Low Bandwidth Utilization
Low Bandwidth Utilization

Technical Specifications

Specifications
Image Sensor1/2.8' CMOS progressive sensor
Max Resolution2592 (H) x 1944 (V) (5 MP)
Intelligent Video AnalyticsAI based Motion detection
Electronic Shutter SpeedAuto Exposure mode, Manual Exposure mode
Day/Night PerformanceTrue Day/night (IR cut filter)
Wide Dynamic Range85dB
Minimum IlluminationColor: 0.01 lux; BW: 0 lux, IR On @ f/1.6
IR Distance32 ft (10 m); 3 IR LEDs
Image SettingsDigital image effects: Flip, mirror and corridor, Configurable brightness, contrast, saturation, hue, sharpness, White balance, Backlight Compensation (BLC), Gain control, Electronic shutter speed, Day/night mode, Dynamic Noise Reduction (3 DNR), Motion detection (5 programmable zones), Event notification, Anti-flicker, AWB.
Lenses (Multiple options)
Focal Length2.8 mm; 3.6 mm; 6 mm
Max. ApertureF/2.6 ; F/2.6 ; F/2.8
Zoom/Focus/Iris AdjustFixed
Field of View90°; 60°; 45°
Features
Network10/100 Mbps Ethernet
Image CompressionH.264; H.265; MJPEG
Video ProfileCBR/VBR
Resolution1920x1080, 1280x720, 640x480, 320x240
ProtocolsDHCP, FTP, HTTP, HTTPS, IPv4/6, LDAP, NTP, RTSP/RTP, RTMP, SMTP, SNMP 2c/3, TCP/IP, UDP, UPnP, 802.1X, SSL, Zero Configure, Network Protocols, Firewall, Bonjour, DDNS; ONVIF S, G, T
StreamsQuad streaming.
  • Stream 1: 1920 x 1080 @30fps; 1280 x 720 @30fps
  • Stream 2: 1920 x 1080 @30fps; 1280 x 720 @30fps
  • Stream 3: 640 x 480 @30fps
  • Stream 4: 320 x 240 @30fps
Built-in MicrophoneYes
Web BrowserChrome®, Safari®, Firefox®, Microsoft Edge®
Event TriggerMotion Detection, Alarm Handler, Tampering Alarm, Object Detection, FTP Upload
NotificationsEmail, SMTP, FTP, record video to server or SD card
StorageMicro SD (up to 256GB max)
SecurityHTTPS encrypted data transmission, SSL, IEEE 802.1X
Mechanical
MountingSurface mount, Wall/Ceiling – using three M3.5 screws (provided along with the device)
Dimensions99 x 95 mm
Weight300g
Electrical
Input PowerPoE IEEE 802.3af; 12 VDC
Power ConsumptionIR ON: <5.5W, IR OFF: <4W
Controls & Connectors

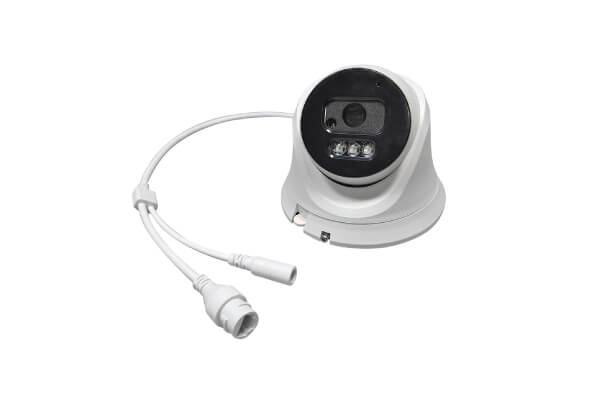

Connectors Pigtail Cable Assembly:
  • RJ45 connector: for POE and 10/100Mbps Ethernet
  • DC Female Jack (5.5x2.1mm): 12V DC input
Environmental
Operating Conditions
  • Operating Temperature: -20 to 65 degrees
  • Impact Resistance: IK8
  • Waterproofing: IP65
Country of OriginIndia
Download

Target Applications

Data Center Surveillance

Data Center Surveillance

Transportation Surveillance

Transportation Surveillance

Industrial Safety

Industrial Safety

Factory Floor Surveillance

Factory Floor Surveillance

Perimeter Security

Perimeter Security

Smart Cities

Smart Cities
