e-CAMNT_MX53x - NTSC / PAL Video Decoder Board for i.MX53 Processors

Linux Computer on module


The e-CAMNT_MX53x Camera board is a NTSC / PAL Analog video decoder board for Freescale® i.MX53 QSB (Quick Start Board). The board supports connectors for S-video and Composite Video (CVBS) input.



This NTSC / PAL Video Decoder board interfaces with the Freescale® i.MX53 QSB Board through 120-pin Board-to-Board connector interface. For more details, please see Hardware user manual.

  The NTSC/PAL Video Decoder board helps customers who provide solutions for Surveillance, Endoscopy, Low Light Camera applications and other customers who use CCD cameras that support analog interface

  NTSC video decoder board
e-CAMNT_MX53x

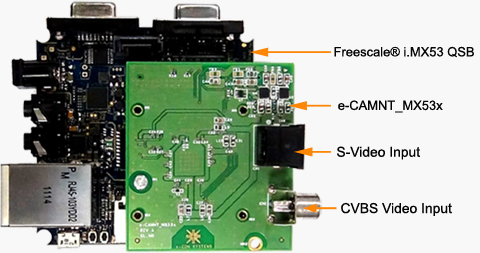

NTSC / PAL video decoder board Connected to Freescale i.MX53 QSB


e-CAMNT_MX53x centered on the TVP5147M1 Video Decoder chip from Texas Instruments, can digitize NTSC and PAL video signals. It contains all required support circuitry, including well-filtered (Anti-alias filter) and stable power supplies, properly terminated 75-ohm inputs.


 e-CAMNT_MX53x Features


Interfaces with the i.MX53 Camera sensor interface (CSI)
Interfaces with the Freescale i.MX53x QSB Board through
  120 pin Board-to-Board Connector
Supports NTSC and PAL Video input formats
Composite (CVBS) and S-Video inputs
V4L2 Linux Driver
Viewfinder option with video preview
ITU-R BT.656 4:2:2 YCbCr output plus HS, VS and Field signals
HSYNC / VSYNC outputs with programmable polarity
I2C Host Port interface from iMX53 for TVP5147M1
  Control / Register configuration
Board size of 61.5mm x 54.76mm
ROHS Compliant

NTSC Video Decoder Board for i.MX53 Camera

e-CAMNT_MX53x



Linux Features

   e-CAMNT_MX53x Documents

V4L2 Support
Complete Source code of device driver
Hardware Deinterlacer available
Sample view finder application supports video streaming with different resolutions.



i.MX53x Hardware deinterlacer in Linux


  The i.MX53x processor supports hardware deinterlacer for incoming interleaved Video. The Interleaved Video looks odd, when a fast moving picture is captured and on a closer look shows video tear. The reason for this is the time gap between the even and the odd frames of the interlaced Video. The odd and even frames are split up and rendered at 16.5 milliseconds time gap and if there is any object movement during the time gap, a video tear results. The i.MX53 processor has a hardware deinterlacer, which makes sure that this tear is not visible for the naked eye and displays the smooth deinterlaced video. e-con Systems supports this hardware deinterlacer feature in Linux.



Customization Services

  Customers who want i.MX53x camera but would prefer to go with a different camera module can contact e-con Systems for customization services. e-con systems builds custom camera boards with device driver support for windows CE, Linux and Android for its customers. For faster integration with i.MX53x, Customers can look at the various camera modules available from e-con Systems at www.e-consystems.com/cameramodule.asp. Nevertheless, e-con Systems is open for integrating third party camera modules also.



Evaluation Kit



The e-CAMNT_MX53x evaluation kit can be bought by customers choosing to evaluate the e-CAMNT_MX53x camera solution with Freescale i.MX53 QSB. Customers would need to have the Freescale® i.MX53 QSB Processor board for interfacing the e-CAMNT_MX53x camera board. Please see the kit contents on the right.





For all enquiries please write to sales@e-consystems.com


Next step   Download NTSC / PAL Video Decoder Board for i.MX53x Processors Documents
or
 Buy Online

   Download e-CAMNT_MX53x Documents
   e-CAMNT_MX53x Hardware user manual
   e-CAMNT_MX53x Linux Software User Manual
  Download NTSC / PAL Video Decoder Board for i.MX53x Processors Documents

US$ 99
Excluding Shipment charges
e-con's Other NTSC/PAL Video Decoder Board
  NTSC / PAL Video Decoder Board for Gumstix Overo
  Related Links
  Evaluation Kit Contents
  e-CAMNT_MX53x Features
  e-CAMNT_MX53x Documents
  e-con's Camera Boards and Modules

  Stereo Vision Camera Reference Design
»   Capella - Stereo Vision Camera Reference Design
  Custom lens Modules
»   1.0 MP HDR Custom lens Camera Module
»   5.0 MP Custom lens Camera Module
  MIPI Camera Modules
»   5.0 MP OV5640 MIPI Module - 70mm Flex Cable
»   5.0 MP OV5640 MIPI Camera Module
  MIPI Camera Boards
»   5.0 MP OV5640 MIPI Camera Board for OMAP4
»   5.0 MP OV5640 MIPI Camera Board for AM/DM37x
  OMAP ™
»   5.0 MP OV5640 MIPI Camera Board for OMAP4
»   5.0 MP OV5640 HD Camera Board for OMAP
  Gumstix® Overo® COMs
»    3.2 MP OV3640 Camera Board for Gumstix Overo
»    5.0 MP OV5640 Camera Board for Gumstix Overo
»
   5.0 MP OV5642 Camera Board for Gumstix Overo
(S-Mount)
»    NTSC/PAL Video Decoder Board for Gumstix Overo
  DaVinci / Sitara
»   5.0 MP OV5640 HD Camera Board for DaVinci / Sitara
  USB 2.0 Camera
»   2.0 MP USB Camera Board
»   5.0 MP Autofocus HD USB Camera Board
  USB 3.0 Camera
»   1.3 MP USB3.0 Global Shutter Camera
  e-con's Camera Selection Matrix
  Camera Board Matrix
  Camera Module Matrix
  Targeted Application
  Endoscopy
  Surveillance
  Low Light Camera applications
  Interfacing CCD Camera
  Demo

PAL Video Decoder Board for i.MX53 Camera

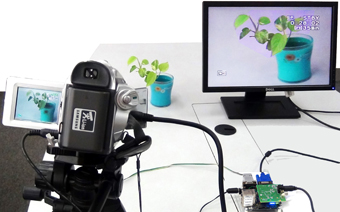

Demo of NTSC-PAL Video Decoder Board for i.MX53x
