e-CAMNT_35x_GSTIX - NTSC / PAL Video Decoder Board for Gumstix® ’s Overo® COM Series

Linux Computer on module


The e-CAMNT_35x_GSTIX Camera board is a NTSC/PAL Analog video decoder board for the Gumstix® Overo® computer-on-module series. The NTSC Decoder Board includes two Video IN connectors RCA socket and Mini-DIN S-Video connector to support CVBS or S-Video input.



This NTSC/PAL Video Decoder board Digital output is interfaced with the Gumstix® Overo® COM through 27-pin FFC cable. The NTSC/PAL Video Decoder board helps customers who provide solutions for Surveillance, Endoscopy, Low Light Camera applications and other customers who use CCD cameras which support analog interface


NTSC video decoder board

e-CAMNT_35x_GSTIX

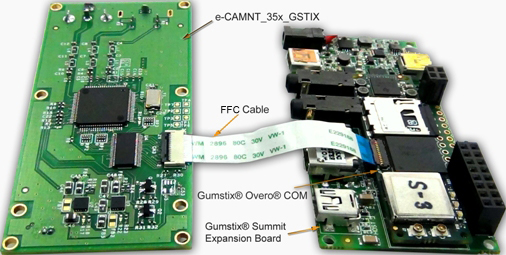

NTSC/PAL video decoder board Connected to Gumstix® Overo® COM

The e-CAMNT_35x_GSTIX supports the Gumstix® Overo® series of COMs that includes the Overo Earth COM (OMAP3503), Overo Air COM (OMAP3503), Overo Water COM (OMAP3530), Overo Fire COM (OMAP3530), Overo® AirSTORM COM (AM3703), Overo® EarthSTORM COM (AM3703), Overo® FireSTORM COM (DM3730) and Overo® WaterSTORM COM (DM3730). Each Gumstix® Overo® COMs or Gumstix® Overo® STORM COMs is powered by a Texas Instruments' (TI) OMAP Processor or the DM37x / AM37x Applications processor  and has the same 27 pin header to which the e-CAMNT_35x_GSTIX can be interfaced.


 e-CAMNT_35x_GSTIX Features


Supports NTSC and PAL Video input formats
Composite (CVBS) and S-Video inputs
V4L2 Linux Driver
Viewfinder option with video preview
ITU-R BT.656 4:2:2 YCbCr output plus HS, VS and Field signals
HSYNC / VSYNC outputs with programmable polarity
I2C Host Port interface from Gumstix OMAP for TVP5147M1
  Control/Register configuration
ROHS Compliant
Board size of 30mm x 80mm
Plugs in to the camera interface of Texas Instruments processor
  on the Gumstix® Overo® COMs through 27-pin FFC Cable

PAL decoder Board

e-CAMNT_35x_GSTIX



Linux Features

   e-CAMNT_35x_GSTIX Documents

V4L2 Support
Complete Source code of device driver
Sample view finder application with source for image  capture at different resolutions
Software deinterlacer available *
   * - available at additional cost

  The Linux camera driver closely integrates with the IVA2.2 (Image, Video and Audio Subsystem) Accelerator subsystem. This enables the application developer to fully utilize the advanced features available in the OMAP35x CPU.



Evaluation Kit



The e-CAMNT_35x_GSTIX evaluation kit can be bought by customers choosing to evaluate the e-CAMNT_35x_GSTIX camera solution with Gumstix® Overo® COMs. Customers would need to have the Gumstix Overo module for interfacing the e-CAMNT_35x_GSTIX camera board. Please see the kit contents on the right.



Customers who have bought development boards based on OMAP i.e. other than Gumstix's Overo and would like to integrate the e-CAMNT_35x_GSTIX Camera on their boards can also check with e-con for support.



For all enquiries please write to sales@e-consystems.com


Next step   Download NTSC / PAL Video Decoder Board for Gumstix Overo Documents
or
 Buy Online

   Download e-CAMNT_35x_GSTIX Documents
   e-CAMNT_35x_GSTIX Hardware user manual
   e-CAMNT_35x_GSTIX Linux Software User Manual
  Download NTSC / PAL Video Decoder Board for Gumstix Overo Documents

US$ 89
Excluding Shipment charges
e-con's Other Camera Boards for
Gumstix® Overo® COMs
  3.2 MP OV3640 Camera Board for Gumstix Overo
  5.0 MP OV5640 Camera Board for Gumstix Overo
  5.0 MP OV5642 Camera Board for Gumstix Overo
  (S-Mount)
  Related Links
  Evaluation Kit Contents
  e-CAMNT_35x_GSTIX Features
  e-CAMNT_35x_GSTIX Documents
  e-con's Camera Boards and Modules
  Stereo Vision Camera Reference Design
»   Capella - Stereo Vision Camera Reference Design
  Custom lens Modules
»   1.0 MP HDR Custom lens Camera Module
»   5.0 MP Custom lens Camera Module
  MIPI Camera Modules
»   5.0 MP OV5640 MIPI Module - 70mm Flex Cable
»   5.0 MP OV5640 MIPI Camera Module
  MIPI Camera Boards
»   5.0 MP OV5640 MIPI Camera Board for OMAP4
»   5.0 MP OV5640 MIPI Camera Board for AM/DM37x
  OMAP ™
»   5.0 MP OV5640 MIPI Camera Board for OMAP4
»   5.0 MP OV5640 HD Camera Board for OMAP
  iMX53x
»   NTSC / PAL Video Decoder Board for iMX53x
  DaVinci / Sitara
»   5.0 MP OV5640 HD Camera Board for DaVinci / Sitara
  USB 2.0 Camera
»   2.0 MP USB Camera Board
»   5.0 MP Autofocus HD USB Camera Board
  USB 3.0 Camera
»   1.3 MP USB3.0 Global Shutter Camera
  e-con's Camera Selection Matrix
  Camera Board Matrix
  Camera Module Matrix
  Targeted Application
  Endoscopy
  Surveillance
  Low Light Camera applications
  Interfacing CCD Camera
  Demo
PAL Video Decoder Board for gumstix overo

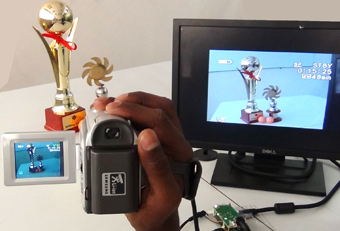

Demo of NTSC-PAL Video Decoder Board for Gumstix Overo
