e-CAM50_CU35x_GSTIX - 5 MP Custom Lens Camera Board for Gumstix® Overo® COM Series

Linux Computer on module


The e-CAM50_CU35x_GSTIX is an add on board from e-con Systems which works plug and play with every Gumstix® Overo® computer-on-module (COM). This board provides the still capture upto resolution of 5MP with custom lens.



Each Gumstix® Overo® COM is powered by a Texas Instruments' (TI) OMAP Applications Processor and has the same 27 pin header to which the e-CAM50_CU35x_GSTIX can be interfaced.



e-con’s new e-CAM50_CU35x_GSTIX camera board for Gumstix® Overo® features the e-CAM50_CU5642_MOD camera module and hence provides the customers with an opportunity of integrating the lens of their choices. The e-CAM50_CU5642_MOD features the 5M pixel image sensor OV5642 from Omnivision.

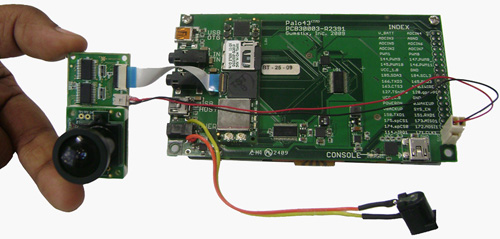

e-CAM50_CU35x_GSTIX Connected to Palo43™ with Gumstix® Overo® COM
Click to Zoom

  e-CAM50_CU35x_GSTIX Connected to Palo43™ with Gumstix® Overo® COM



 e-CAM50_CU35x_GSTIX Features


Max 2592 x 1944 resolution with

  • 30fps upto 720P and
  • 7fps above 720P.
5 Megapixel Fixed Focus Image sensor
Linux V4L2 camera driver
Viewfinder option with video preview at 30fps
e-CAM Dimensions (mm) : 25.12 x 48.88
Plugs in to the camera interface of TI OMAP
  processor on Gumstix® Overo® COM
5MP Camera Board with Custom lens
e-CAM50_CU35x_GSTIX

Camera Module (e-CAM50_CU5642_MOD) Features



 OV5642 CMOS Image Sensor with integrated ISP
 Small form-factor pluggable camera module
 Targeted for application where custom lens is required
 M12P0.5 S-Mount Lens holder
 Compatible with standard M12P0.5 Lenses
 Flexibility to choose a lens as per application requirements
 Output Format - YUV 4:2:2
 27.7mm x 23.11mm size. Height depends on the Lens
 8bit Parallel Video Port with SYNC Signals
 Pixel size - 1.4µm
 Lens Size - 1/4 "
 RoHS Compliant
 40-pin SMT Connector
 Wide variety of Interchangeable lenses can be used




5MP Camera Board with Custom lens

e-CAM50_CU5642_MOD
with Optional lens



Linux Features



V4L2 Support
Sample application with source for image capture at different resolutions
Support for white balance
Support for OMAP35x / AM37x / DM37x ISP (IVA2.2) features such as Color Correction, Gamma Correction and
  Resizing
Gstreamer support
Support for H.264 Video recording at 30fps



Evaluation Kit




Customers can choose to evaluate the e-CAM50_CU35x_GSTIX can choose to buy the evaluation kit. The evaluation kit features the e-CAM50_CU35x_GSTIX and the FFC cable to connect to the Gumstix® Overo® COM . A normal viewing angle lens is optional.



The evaluation kit contains the binary drivers. The driver source code can be purchased separately on request at an additional cost. e-con provides the details of where the lens is purchased and customers are free to pick up the required lens from a wide choices of 12mm S mount lenses.


  For all enquiries please write to sales@e-consystems.com.



 e-CAM50_CU35x_GSTIX EOL Notification

e-con's Other Camera Boards for
Gumstix® Overo® COMs
  5.0 MP OV5640 Custom Lens Camera Board for Gumstix Overo
  5.0 MP OV5640 Camera Board for Gumstix Overo
  NTSC / PAL Video Decoder Board for Gumstix Overo
  Related Links
  Evaluation Kit Contents
  e-CAM50_CU5642_MOD

  Article >> How to choose the lens for the
  e-CAM50_CU5642_MOD?
  e-con's Camera Boards and Modules
  Stereo Vision Camera Reference Design
»
  Custom lens Modules
»   1.0 MP HDR Custom lens Camera Module
»   5.0 MP Custom lens Camera Module
  MIPI Camera Modules
»
»
  MIPI Camera Boards
»
»
»
  OMAP ™
»   5.0 MP OV5640 MIPI Camera Board for OMAP4
»   5.0 MP OV5640 HD Camera Board for OMAP
  iMXx
»
»   5MP OV5640 MIPI camera board for iMX6
»   5MP OV5640 MIPI camera for Wandboard
  DaVinci / Sitara
»   5.0 MP OV5640 HD Camera Board for AM/DM37x
»
  USB 2.0 Camera
»   2.0 MP USB Camera Board
»   5.0 MP Autofocus HD USB Camera Board
  USB 3.0 Camera
»   1.3 MP USB3.0 Camera (Monochrome)
»   1.3 MP USB3.0 Camera (Full Color)
»   8.0 MP Autofocus USB 3.0 Camera
»   3.0 MP 10x Optical Zoom Camera
  e-con's Camera Selection Matrix
  Camera Board Matrix
  Camera Module Matrix
 Connecting e-CAM with Overo

Connecting e-CAM with OVERO
Step : 1
 Connecting e-CAM with OVERO
Step : 2
e-CAM with OVERO
Step : 3
  Targeted Application
  Low Vision Products
  OCR
  Video Conferencing

  Kit Contents
  HARDWARE
    - e-CAM50_CU35x_GSTIX 5.0 MP Camera
    Daughter board
  - 70° FOV Lens (Optional)
  SOFTWARE
    - V4L2 - Linux Camera driver
    - Sample View finder Application
 Note: "FFC Cable" is supplied along with the
 camera board.
