Camera Boards >> 3.2 Mega Pixel UAC AutoFocus USB Camera Board
e-CAM33_USB - 3.2 Mega Pixel UAC AutoFocus USB Camera Board embedded Linux Microsoft Gold Partner


e-CAM33_USB is a high performance 3.2 Mega Pixel UAC Auto focus pluggable USB camera module with fixed lens holder and OV3640 Image sensor from Omnivision.



This USB camera module has a built in microphone and an integrated ADC which can provide user with high quality audio sampling functions. 16 bit Pulse code modulation is supported with sample rate of 48 KHz.



USB board camera has 3 General purpose Input pin and 1 General purpose Output pin through UVC extension control.


  USB Camera Board in Linux

  e-CAM33_USB Features


Houses 3.2 Mega Pixel Auto Focus Camera Module
Lightweight, versatile, and portable design
Plug-and-Play setup (UVC AND UAC compliant)
Built-in mic with 16 bit PCM support
4 GPIO - 3 General purpose Input pins and 1 General
  purpose Output pin through UVC extension control
Sample applications


  • Video/e-mail and photo capture support
  • Automatic exposure control
Frame Rate*1 YUV2 -


  • VGA
  • 1.3M
  • 2.0M
  • 3.0M
– 30 fps
– 30 fps
– 15 fps
– 3 fps
Temperature Range - 0° to +50°C Stable image*2
Operating Voltage - 5V ± 250mV
Power requirements - 400 mA (max)
ROHS compliant
Size in mm(lxbxh) - 60 x 11 x 6.8

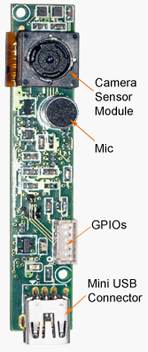

e-CAM33_USB - 3.2 Mega Pixel UAC AutoFocus USB Camera board
Click to Zoom
e-CAM33_USB
3.2 MP USB Camera Board

 *1 Frame rates are subject to change depending upon lighting conditions.
 *2 Noticeable difference in image quality found when extended over this range

CAMERA MODULE (e-CAM32_3640_MOD) FEATURES

Omnivision OV3640 - 3.2 Mega Pixel image sensor
Focus Type - Auto focus
  (Windows and Linux supported)
View Angle - 65° Diagonal
Output Format - YUV/YcbCr 4:2:2
Object Distance - 10 CM to Infinity
Module Size - 10.0 x 10.0 mm
Lens Size - 1/4 "
Pixel Size - 1.75 µm x 1.75 µm
RoHS Compliant
S/N Ratio - 36 dB
Dynamic Range - 60 dB


3.2 MP Camera Sensor module
3.2 MP Camera Module


Software Features   e-CAM33_USB Documents


 Supported OS - Windows XP, Windows 7, Linux and Mac.
 Sample Application Video/image capture in Windows XP, Windows 7 and Linux

  Evaluation Kit



Customers who own platforms that support USB 2.0 highspeed and are interested in evaluating the 3.2 mega pixel USB camera module can directly buy the e-CAM33_USB from e-con Systems.



In addition to e-CAM33_USB, the evaluation kit comes with sample applications for video/still image capture (for Linux, Windows XP, Windows 7, Mac) and support for 4 weeks. For more details, please refer the evaluation kit contents on the right.

  For all enquiries please write to .


  Download 3.2 MP UAC AutoFocus USB Camera Documents
or
 Buy Online


   Download 3.2 MP USB Camera Documents
   e-CAM33_USB Module Specification
   e-CAM33_USB Hardware User Manual
   e-CAM33_USB Windows SW Installation Guide
   e-CAM33_USB Windows SW Application Manual
   e-CAM33_USB Linux Software Manual
  3.2 MP UAC AutoFocus USB Camera Documents
Volume Price Starts from
US$ 39
Excluding Shipment Charges
  Related Links
  Evaluation Kit Contents
  e-CAM33_USB Documents
  e-CAM33_USB Image Gallery
  e-con's Other USB Camera Board

    2.0 MP USB Camera Board - e-CAM21_USB
  Targeted Application
  Notebook camera
  Interactive Education & Meeting solutions
  Document camera visualisers
  Digital Pathology
  Video conferencing
  e-con's Camera Boards and Modules

  Stereo Vision Camera Reference Design
»   Capella - Stereo Vision Camera Reference Design
  Custom lens Modules
»   1.0 MP HDR Custom lens Camera Module
»   5.0 MP Custom lens Camera Module
  OMAP
»   3.2 MP OV3640 Camera Board for OMAP
»   5.0 MP OV5642 HD Camera Board for OMAP
»   5.0 MP OV5640 HD Camera Board for OMAP
  Gumstix Overo COMs
»    3.2 MP OV3640 Camera Board for Gumstix Overo
»    5.0 MP OV5642 Camera Board for Gumstix Overo
»
   5.0 MP OV5642 Camera Board for Gumstix Overo
(S-Mount)
»    NTSC/PAL Video Decoder Board for Gumstix Overo
  iMX53x
»   NTSC / PAL Video Decoder Board for iMX53x
  Davinci / Sitara
»   5.0 MP OV5642 HD Camera Board for Davinci / Sitara
»   5.0 MP OV5640 HD Camera Board for Davinci / Sitara
  PXAx
»   3.2 MP OV3640 Camera Board for PXAx
  e-con's Camera Selection Matrix
  Camera Board Matrix
  Camera Module Matrix
  e-CAM33_USB Camera Images

e-CAM33_USB - 3.2 MP USB Camera connected to Laptop
Click to Zoom
3.2 MP USB Camera Board connected to Laptop
  Kit Contents
  HARDWARE
    - e-CAM33_USB - 3.2 Mega Pixel USB
    camera board
  Supported OS
    - Windows XP / 7 / Linux / Mac
    - Sample View finder Application
     with Source Code for Windows/Linux
  Documentation
  - e-CAM33_USB Documents
Volume Price Starts from
US$ 39
Excluding Shipment Charges
