Online Store  Online Store

Windows CE / Windows Embedded Compact Board Support Package

A stable and high performance BSP is vital to a good product and great user experience. BSP is the base over which the whole application and user experience is built. e-con Systems specializes in providing production ready BSPs to a range of hardware platforms including but not limited to eSOMIMX6, BeagleBone black, eSOM310 and PXA255 development kit.

Windows Embedded Logo

Production Ready BSP

A production ready BSP is tested and certified for stability, performance and completeness. With many SOCs packing multiple peripherals and cores into them, it takes a lot in bringing out the full performance of the hardware in the software. The key factor to be maintained is the stability while bringing out the features. A production ready BSP takes care of both ends of the spectrum and is tested thoroughly.

List of production ready BSPs that e-con Systems provide:

BSP Name

Platform

Processor

For More Information

eSOMIMX6 BSP

eSOMIMX6

Freescale IMX6

Click Here

eSOM3730 BSP

Almach Dev Kit

TI DM3730/AM3703

Click Here

AM335x BSP

Beagle Bone Black

TI AM335x

Click Here

PXA310 BSP

eSOM310 SOM

MARVELL PXA310

Click Here

Alioth PXA300BSP

Alioth Dev Kit

MARVELL PXA300

Click Here

Regulus PXA270 BSP

Regulus Dev Kit

MARVELL PXA270

Click Here

We are also experienced in using processor platforms like Cirrus, RMI, ATOM, Vortex86 and AMD.

processor logo

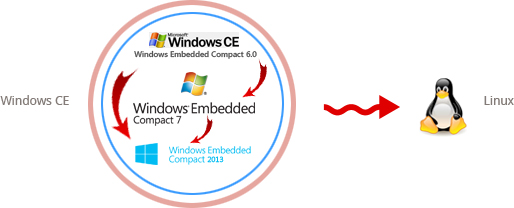

Porting Board Support Packages and Support across Windows CE Versions

For over a decade now, Windows CE has been a preferred OS for devices and every version of the OS have their own distinctive advantages/features. If you would like to upgrade your product to the latest version, e-con Systems can do the porting and manage your existing applications as well.

Porting Board Support Packages and Support across Windows CE Versions

Features of Windows Embedded Compact / Windows CE BSP

Real time performance - Windows CE can be used to develop an ergonomic and user friendly GUI. Being a hard real time OS, it can assure deterministic outputs which are essential in critical segments such as medical devices and real time monitoring and control systems.

Boot time optimization - We optimize boot loaders for the board to support special use cases and we have optimized boot time to less than a second for the Windows CE BSP.

Multicore Support - Hard real time task can be achieved easily by playing with thread priority and thread quantum; helps to control the power consumption of the system by letting us power off/on any CPU whenever required; lower possibilities of blocking the lower priority thread by higher priority threads as the tasks are shared on multiple core dynamically. e-con Systems has Windows CE BSP for IMX6 that supports multicore.

Development Support and debugging - We provide BSP with complete debugging and easy OS image build options, complete installation support for development, custom OS design support for quick development, remote debugging via Ethernet/USB RNDIS and debug serial port for driver and application development, active sync in WinCE 6.0 / WinCE 7.0 for application debugging, device firmware upgrade option through USB, custom shell to facilitate application development, sample application to test the peripherals and develop applications.

Testing and Certification - e-con Systems BSPs have gone through Windows Embedded CE Test Kit (CETK) / Windows Embedded Compact Test Kit (CTK). CTK is a tool that can be used to test the functionality and performance of device drivers and related hardware for a Windows Embedded Compact powered device. There are a number of components in the BSP and OS that could be tested with the test cases available in the CTK tool such as audio, backlight, battery, communication bus, display, file system, input, kernel, networking (Ethernet), OAL (OEM Abstraction layer), power manager, security, shell, storage media and USB.

contact services

"We met e-con Systems when we were looking out for a Windows CE based COM vendor. We knew that they were Microsoft Windows Embedded Gold Partner.

Our intention was that the COM should have a stable and formidable BSP since our application is going to run on top of it."

Manuel Dindakis,

Product Design Manager,

EMS Computers.
