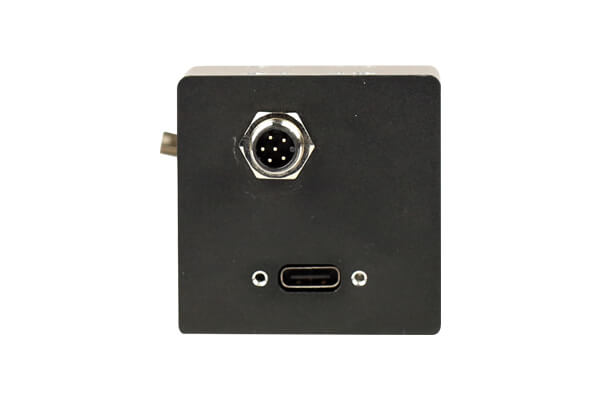

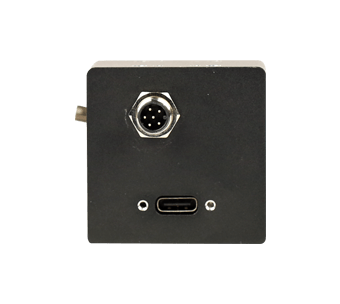

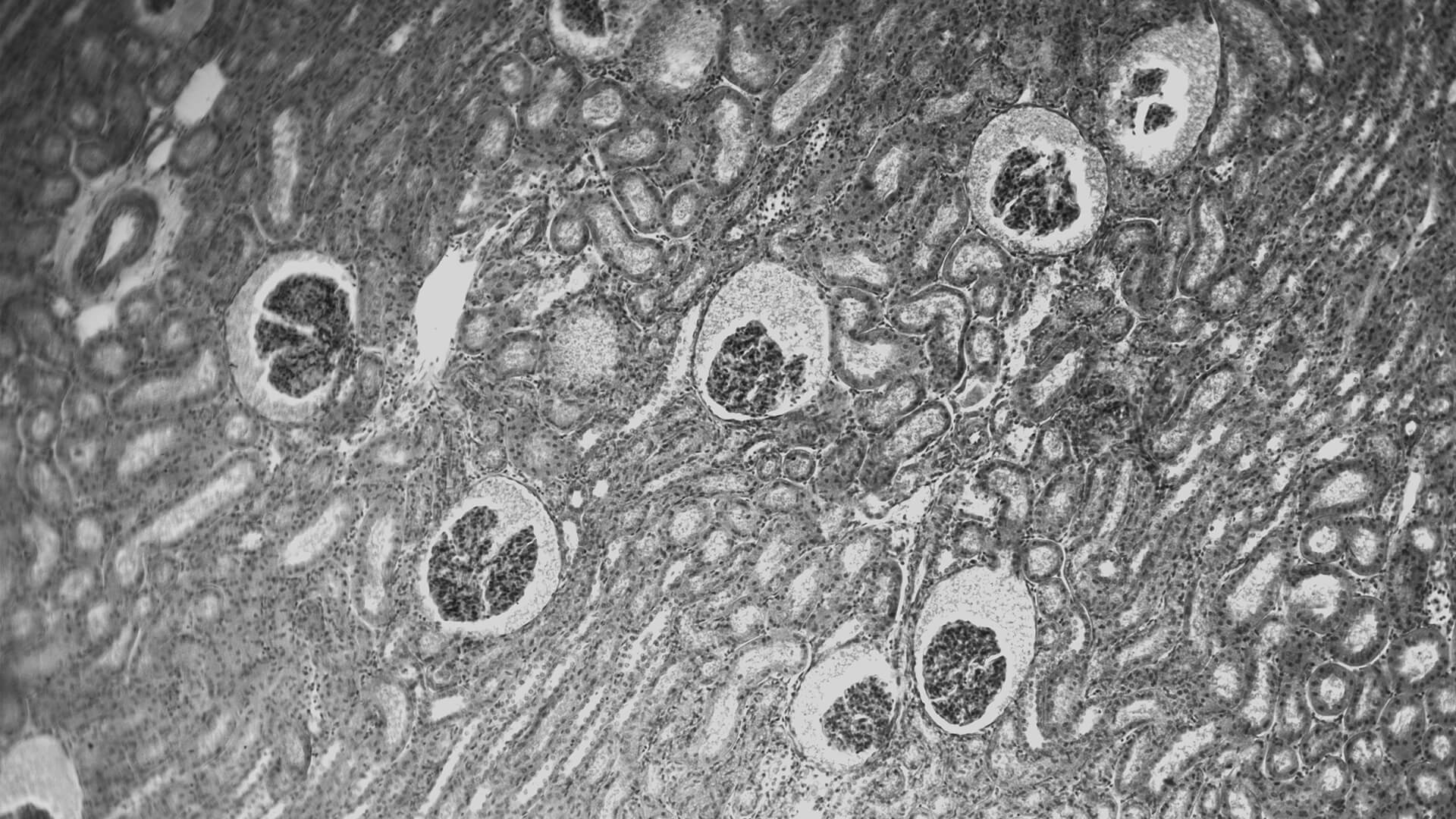

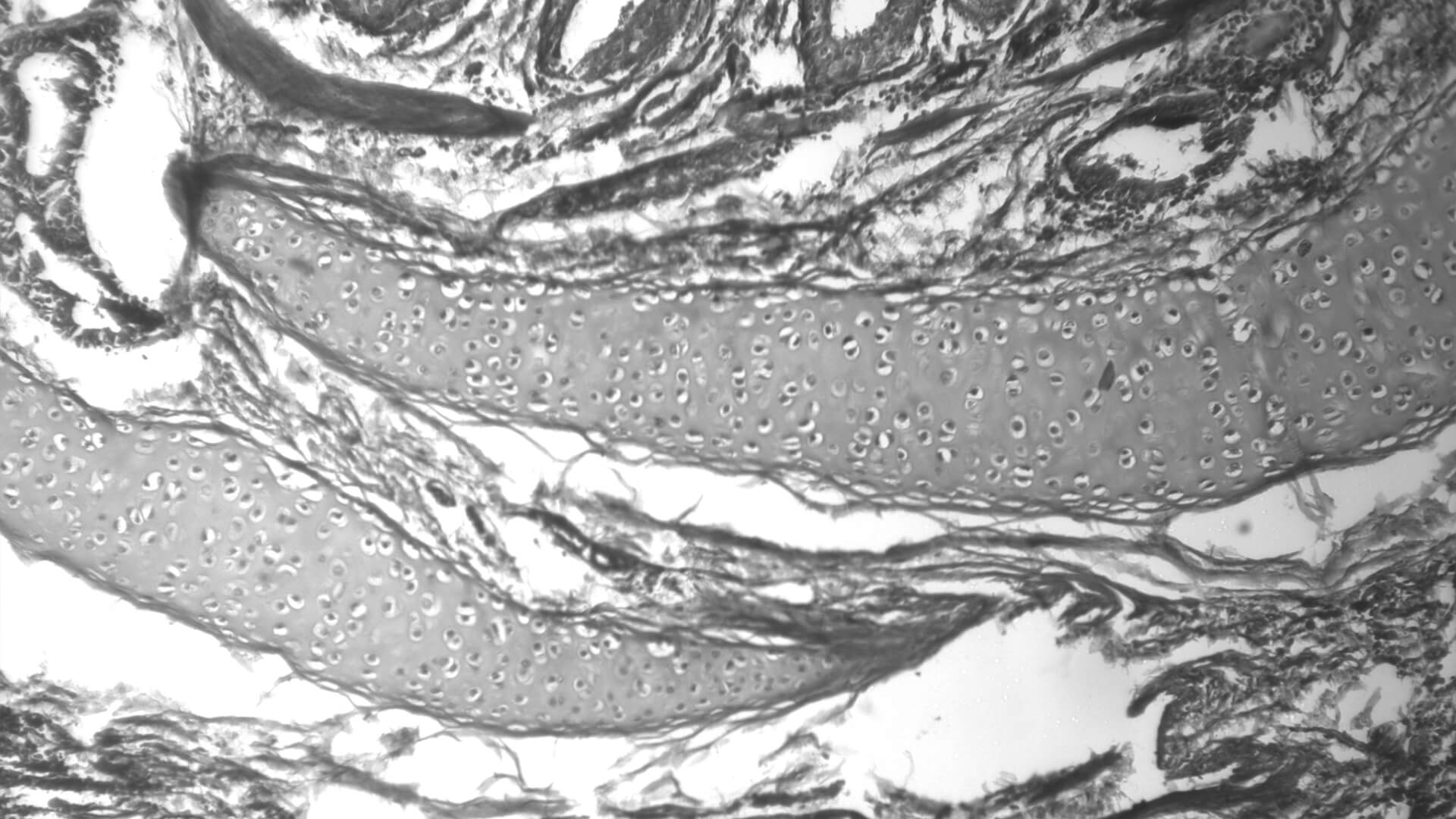

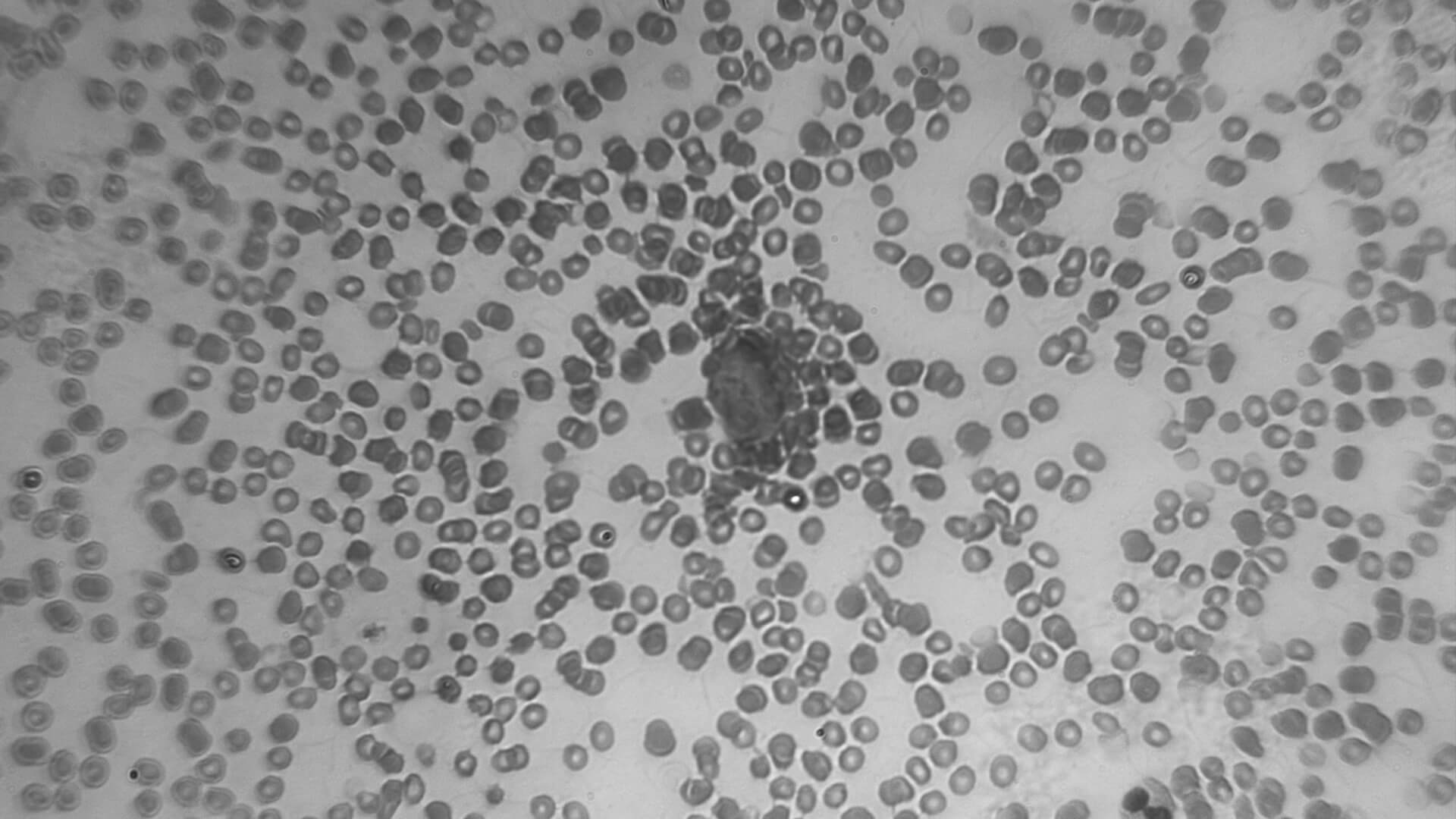

See3CAM_50CUGM - 5MP Sony® Pregius IMX264 Global Shutter Monochrome Camera

• Key features:
• • Frame Rate:
    • Streams 5MP @ 35 fps, HD @ 99 fps & VGA @ 145fps
    • Up to 2000 fps for Custom ROI *
    Refer Datasheet  for complete frame rate details.
  • Output format: Y12 (12 bits/pixel)
  • Supported OS: Windows and Linux
  • External Hardware Trigger Input
  • Unique ID for each camera
  • Lightweight, versatile, and portable two-board solution
• Interface:
• • Interface: USB 3.2 Gen 1 device
  • Connector: Type-C reversible interface connector
  • UVC complaint - no additional drivers required
  • Backward compatible with USB 2.0 hosts
• Module features:

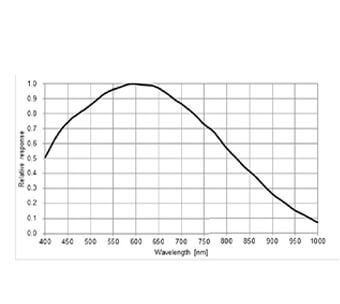

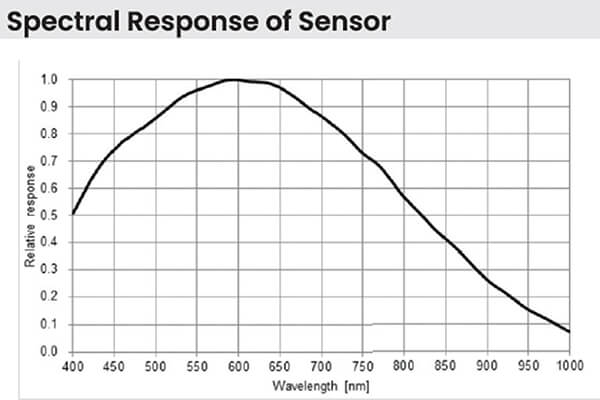

• • Sensor: IMX264 from Sony® Pregius
  • Focus Type: Fixed focus
  • Resolution: 5MP
  • Chroma: Monochrome
  • Shutter Type: Global Shutter
  • Optical Format: 2/3"
  • Output Format: Y12 (12 bits/pixel)
  • Pixel Size: 3.45 μm x 3.45 μm
  • Sensor Active Area: 2464 (H) × 2056 (V)
  • Array Size: 2464 (H) × 2056 (V) Pixels
  • Holder: C-Mount
  • FOV: 33.4° (D), 26.1° (H), 22.6° (V) (with the lens provided by e-con)
• Electrical and Mechanical:
• • Operating Voltage: 5 V +/- 5%
  • Operating Temperature Range: -10°C to 50°C
  • Typical Power Consumption (W) :
    • Min-0.44W
    • Max-1.225W

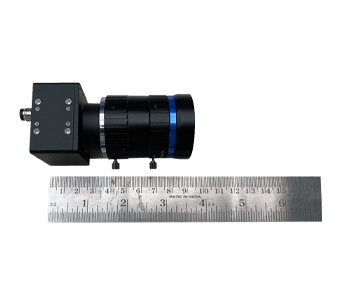

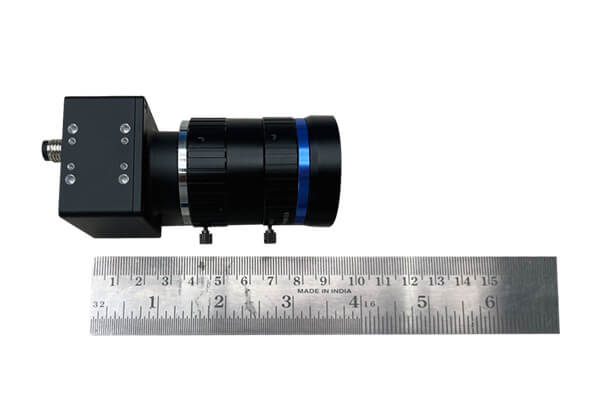

  • Size in mm (l x b x h):
    • With Enclosure:
      • 40 mm x 40 mm x 45.23 mm (without lens)
• Miscellaneous:
• • Compliance: FCC, RoHS
• Launched on:
• * - Not supported by default. Requires firmware customization for higher framerates with custom ROI resolutions.

• Supported OS - Windows and Linux
• Sample Application :
• • e-CAMView – Windows Camera application for Video recording, Video Preview and Still Capture.
  • QtCAM – Linux Camera application for Video recording, Video Preview and Still Capture.
• Still Image Resolutions :
• • All supported resolutions
• UVC Controls :
• • Gain
  • Exposure
• Extension Unit Controls:
• • Stream Mode
  • Strobe
  • Orientation
  • Black level
  • Burst Image Capture
  • Save Configuration
• Upcoming Controls ^* :
• • Auto Exposure
  • Auto Gain
  • Dynamic ROI
  • Multi Exposure Trigger
  • Multi Frame Set Output Mode
  • Short Exposure
  • Binning - 2x2
  • Read Sensor Temperature
  • Software Trigger Mode
• * - The software controls will be added in the future releases

Customers who own platforms that support USB 3.2 Gen 1 and are interested in evaluating the 5MP Monochrome USB camera module can directly buy the See3CAM_50CUGM from e-con Systems™. Customers can order See3CAM_50CUGM with/without lens.

Part No	Description	Sample Price (1 Unit)	Purchase
See3CAM_50CUG_MXLCC_BX_H02R1	5MP IMX264 USB 3.0 Monochrome Camera with enclosure & with lens	USD 749
See3CAM_50CUG_MXXCC_BX_H01R1	5MP IMX264 USB 3.0 Monochrome Camera with enclosure & without lens	USD 649
See3CAM_50CUG_MXXCC_H01R1	5MP IMX264 USB 3.0 Monochrome Camera without enclosure & without Lens	-

In addition to See3CAM_50CUGM , the evaluation kit comes with e-CAMView (Windows) / QtCAM (Linux) - Sample application for Video Preview and Still Capture along with the UVC Extension features (for Windows 10/8.1, Linux). For more details, please refer the evaluation kit contents below.

For all enquiries please write to camerasolutions@e-consystems.com

Kit Contents:

• Hardware:
• • See3CAM_50CUGM - 5MP USB Global shutter Camera with C-Mount Lens Holder
  • USB 3.2 Gen 1 Type-C Cable
  • Lens (Optional)
• Software: (Customers will have to download the software from e-con Developer Resource)
• • Supported OS: Windows 10/8.1 and Linux
  • e-CAMView (Windows) / QtCAM (Linux) - Video Preview and Still Capture Application

See3CAM_50CUGM – Customization

• Do you need a support for external mechanical shutter?
• Do you need a custom lens mount (S-mount/CS-Mount)?
• Do you want a smaller form factor or single board solution?
• Do you need LED flash?
• e-con Systems™ offers complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
