e-CAM32_USB - 3.2 Mega pixel USB Camera
Microsoft Gold Partner


e-CAM32_USB is a 3.2 Mega pixel Auto foucs USB camera with the Length of the cable varying from 1 feet to 5 feet. It works with USB interfaces that supports high speed.


The e-CAM32_USB supports the USB-Video-Class driver provided by Microsoft as a camera capture driver. So it can operate on WindowsXP-SP2 or Windows VISTA without installing another camera capture driver.


  e-CAM32_USB Features


Houses 3.2 Mega Pixel Auto Focus Camera Module
Seamlessly interfaces with High speed USB 2.0 interface
Supports OMAP, X86 and Intel Atom Processors

3.2 MP Camera Module
3.2 MP Camera Module

 Supported OS - Windows XP, Windows Vista, and Linux
 Sample application for Video/image capture
 Maximum Image transfer Rate -


  • VGA
  • 1.3M
  • 2.0M
  • 3.2M
 – 24 fps
– 11 fps
– 3 fps
– 3 fps
 Temperature Range -


  • Operation - 0° to +60°C
  • Stable Image - 0° to +50°C
 Power requirements -


  • Suspend @ under 2.5mA
  • Operation @ 150+/-15mA
  • Operation @ 250+/-15mA ( /w AF working)
Size in mm - 14.25±0.15 X 58.5±0.15



CAMERA MODULE FEATURES

Omnivision OV3640, 3.2 MP Image sensor
Focus Type - Auto Focus (supported only for Windows)
View Angle - 64.5° Diagonal
Output Format - YUV422
Focus Range - Auto Focus@10cm ~ infinity
Lens Size - 1/4"
RoHS Compliant
S/N Ratio - 38 dB






 Software Features

 Supported OS - Windows XP, Windows Vista and Linux
 Sample Application for Windows XP, Windows Vista and Linux

  Evaluation Kit



Customers who own platforms that support USB 2.0 highspeed and are interested in evaluating the 3.2 mega pixel USB camera can directly buy the e-CAM32_USB from e-con Systems.



In addition to e-CAM32_USB, the evaluation kit comes with sample applications for video/still image capture (for Linux, Windows XP, Windows Vista) and support for 4 weeks.



For more details, please refer the evaluation kit contents on the right.

  For all enquiries please write to .

 e-CAM32_USB EOL Notification
 e-con Camera Boards
1.0 MP HDR Custom lens Camera Module
5.0 MP Custom lens Camera Module
3.2 MP OV3640 Camera Board for OMAP
5.0 MP OV5642 HD Camera Board for OMAP
3.2 MP OV3640 Camera Board for Gumstix Overo
5.0 MP OV5642 Camera Board for Gumstix Overo
5.0 MP OV5642 Camera Board for Gumstix Overo
(S-Mount)
NTSC / PAL Video Decoder Board for Gumstix Overo
5.0 MP OV5642 HD Camera Board for DaVinci/SITARA
5.0 MP OV5640 HD Camera Board for DaVinci/SITARA
3.2 MP OV3640 Camera Board for PXAx
2.0 MP USB Camera board
3.2 MP UAC AF USB Camera board

 e-con Camera Selection Matrix
Camera Board Matrix
Camera Module Matrix
  Images

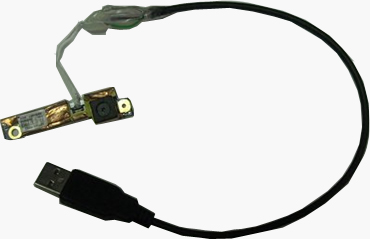

e-CAM32_USB
3.2 MP USB Camera
  Targeted Application

  Notebook & Webcams
  Video Surveillance
  Kit Contents
  HARDWARE
    - e-CAM32_USB - 3.2 Mega Pixel USB
    camera Daughter board

  Supported OS
    - Windows XP / Vista / 7 / Linux
    - Sample View finder Application
     with Source Code
  Documentation
  - e-CAM32_USB Documents
