e-CAM32_iMXx – 3.2 Mega pixel Camera Solution for Contact e-con
Microsoft Gold Partner
i.MX processor

  e-CAM32_iMXx is e-con Systems´ ready to use, plug and play daughter module, which can be interfaced through Quick Capture Interface(QCI) of the i.MX31 Processors.


e-CAM32_iMXx Features

 Houses 3.2 MP autofocus camera
 Seamlessly interface with High speed CMOS
   Interface on Phytec's i.MX31 & i.MX ADS board
 Supports i.MX31 Processors
 Anti-Shake Control
 Linux camera driver
 Sample application for Video/image capture

3.2 MP Camera Pixel

e-CAM32_iMXx

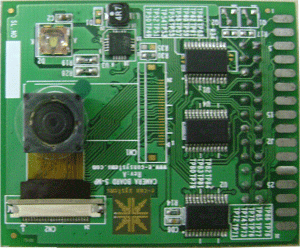

3.2 MP Camera Board


CAMERA MODULE FEATURES

Omnivision OV3640 - 3.2 Mega pixel CMOS Image sensor
Focus Type – Auto Focus
Maximum Image transfer Rate

  • OXGA - 15 fps
  • XGA   - 30 fps
View Angle - 65° Diagonal
Output Format - YUV/YcbCr 4:2:2
Object Distance - 10 CM to Infinity
Temperature Range

  • Operation - -20° to 70° C
  • Stable Image - 0° to 50° C
Power requirements

  • Active - 50mW (15 fps, no I/O power)
  • Standby - 30 µW
Module Size - 10.0 x 10.0 mm
Lens Size - 1/4 "
RoHS Compliant
S/N Ratio - 36 dB
Dynamic Range - 60 dB


OV3640 3.2MP Camera Sensor module

OV3640 3.2 MP
Camera Sensor module



 Software Features

 Linux device driver with Video for Linux (V4L2) support
 Sample application with source for image capture at different resolutions
 Support for white balance, autofocus, flash lighting, brightness control, zoom

  The OV3640 (color) image sensor is a low voltage, high performance 1/4-inch 3.2 megapixel CMOS image sensor that provides the full functionality of a single chip QXGA (2048 x 1536) camera using OmniPixel3™ technology in a small footprint package. It is an Anti-shaking camera module and provides full-frame, sub-sampled, windowed or arbitrarily scaled 8-bit/10-bit images in various formats via the control of the Serial Camera Control Bus (SCCB) interface or MIPI interface.

The OV3640 supports both a digital video parallel port and a serial MIPI port. The MIPI and ISP interface can be used for a second camera sensor without requiring a dual serial port camera system.

  Evaluation Kit



Customers who own Freescale i.MX31 ADS platform, Phytec’s i.MX31 RDK and are interested in evaluating the 3.2 MP autofocus camera can buy the e-CAM32_i.Mxx based evaluation kit from e-con Systems.  Other than the e-CAM32_i.MXx, the evaluation kit comes up with sample viewfinder application for still capture, device driver for Linux (V4L2 compliant), schematics for the processor interface and support for 4 weeks. For more details, please refer the evaluation kit contents on the right.
